LCD -matrices,differences and what models are placed

Discussion in 'LCD & LED LCD TVs' started by hristoslav2, Oct 31, 2009.

Thread Status:
Not open for further replies.
  1. hristoslav2

    hristoslav2 Member

    Joined:
    Jul 6, 2009
    Messages:
    559
    Trophy Points:
    43
    Ratings:
    +191
    1.History
    2.Types
    3.Producers
    4.How to understand what a matrix is placed in our television


    HISTORY
    The development of the modern LCD panel dates back much further than the big clunky watch you probably used to wear. In 1888 Friedrich Reinitzer was the first to discover the liquid crystalline nature of cholesterol benzoate, derived from carrots of all things. Reinitzer discovered that at 145 degrees C, the material melted, becoming cloudy. At 170 degrees C the material became clear. He presented his findings to a meeting of the Vienna Chemical Society that same year. Both Otto Lehmann and Charles Mauguin published papers expanding on the work of Reinitzer, in 1904 and 1911 respectively, but liquid crystals largely remained a scientific curiosity for the next 80 years.

    The Modern Explosion
    In 1962 it was Richard Williams of RCA who noticed that you could achieve some interesting electro-optical effects in liquid crystal by applying electricity to it, describing what is known as “Williams Domain” inside the liquid crystal. In 1964 George Heilmeier, also at RCA, expands upon the work of Williams and manages to turn a clear liquid milky by applying electricity. Heilmeir actually had the foresight to envision that a wall sized full color LCD display was achievable. The first actual active matrix display was T. Peter Brody in 1972. They were initially limited to small displays, like calculators, watches, and other small devices. In fact, it was Tomio Wada at Sharp who, in 1973, developed the first LCD product, a pocket calculator. In 1988 Sharp demonstrated the first active matrix full color full motion LCD panel. In 1991 Sharp's Magohiro Aramoto introduced the first wall hanging television product, the Liquid Crystal Museum. Heilmeier's dream had become a reality.
    Several companies began investing in LCD technology in a big way. Sharp has been an industry leader since they first displayed their full color 14” in 1988. Since then other manufacturers, like Samsung, Hannstar, LG, Acer, BenQ, HP, Casio, Sony and Viewsonic (among many, many more!) have entered the fray. Sharp continues to be an industry standard, but Samsung and Sony have also made compelling claim to the title. . Despite being pivotal in the development of LCD technology, RCA was never able to capitalize on their contributions and never made or marketed a product.
    LCDs are literally everywhere because they're relatively inexpensive to make and can be used in virtually any application. The big manufacturers, like Samsung, Sharp, Hannstar and many others, have spent hundreds of millions of dollars improving the technology. Today, LCDs can range in size from a fraction of an inch all the way up to the current monster, Sharp's 108” display. The basic active matrix design hasn't changed much since 1972. Like cars and computers, the design has become more refined, more responsive, and better at displaying accurate color.
    What began as a curious physical effect in a material derived from a carrot took flight in a hopeful dream of a pioneer. Today's LCD are faster than ever before and capable of reproducing clear, vibrant, life like pictures, improving on everything that's gone before.. There are still limitations to the technology, but the next generation of displays will feature incredibly high resolutions and better image quality. Baby, you've come a long way.


    Modern rediscovery

    In 1962 Richard Williams of RCA, noticed that could be achieved to some interesting electro-optical effects in liquid crystals by applying electricity to them, describing what is known as "Williams Domain" inside the liquid crystal. In 1964, George Heilmeier, also company-RCA, isledvaniyata expand on his work and Williams managed to obtain a clear milky liquid by applying electricity. Heilmeir actually predicted that is achievable to make large wall full color LCD displays. The first real active matrix display is made of T. Peter Brody year. Initially in 1972 were limited to small displays, such as calculators, watches and other small devices. In fact, it was made by Tomio Wada from Sharp, which in 1973, developed the first LCD display product for a pocket calculator. In 1988, firstly revealed Sharp LCD panel with full-color active matrix. In 1991 Magohiro Aramoto from Sharp presented the first television hanging on the wall with liquid crystals. Finally Heilmeier's dream becomes reality.

    Several companies began investing in LCD technology in large scale. Sharp is a leader since they first showed its first color 14 "color display in 1988. Since then, other manufacturers such as Samsung", Hannstar, LG, Acer, BenQ, HP, Casio, Sony and Viewsonic (now very, very more!) enter into a battle for market position. Sharp continues to be industry standard, but Samsung and Sony also make claims against the technology. Although RCA is a leader in the development of LCD technology has never been able to capitalize on their investment research and will never sell your product.

    LCDs are literally everywhere, as they are relatively inexpensive, is used in all applications. Large manufacturers such as Samsung, Sharp, Hannstar and many others, spent hundreds of millions of dollars to improve the technology. Today, LCDs can vary in size from a fraction of an inch to the size of monster-Sharp 108 "display. The design of active matrix has not changed much since 1972.

    Liquid crystals are organic compounds with long molecules, which in its natural state is characterized by the absence of close and distant arrangement, ie most neighboring molecules are arranged in parallel in length to each other, but generally they are all rather chaotic.
    The LCD panel liquid crystals are confined between two parallel transparent plates with very finely striated inner surface. Molecules of liquid crystals follow the orientation of the inner few gullies and since both are striated plates at 90 ° to one another, this leads to a kind of "twisting" of molecules. The path of light rays depends on the arrangement of molecules and passing through the layer of liquid crystal light can change its direction.

    Production consists of over 300 individual steps performed in clean rooms, with the highest level of cleanliness - Class 10 "-no more than 10 particles of powder to 1 cubic meter.

    1 line matrix sizes - 40 x 30 mm which are cut from 1x15 "display
    3.3 line matrix with dimensions -720 x 600 millimeters from a cut 4x15 "display
    3.4 line matrix with dimensions -720 x 610 millimeters from a cut 6xXX "display
    3.5 line matrix with dimensions -750 x 620 millimeters from a cut 6x14.1 "display
    4 line matrix with dimensions -880 x 680 millimeters from a cut 6x15 "display
    5 line matrix sizes -1250x1100 millimeters from a cut 6x22"displays
    5.1 line matrix sizes -1300x1100 millimeters from a cut 6x26"displays
    5.5 line matrix sizes -1500x1300 millimeters from a cut 6x32"displays
    6 line matrix sizes -1850x1500 millimeters from a cut 8x32"displays or 6x37''
    7.1 line matrix sizes -2200x1870 millimeters from a cut 8x40"displays
    7.2 line matrix sizes -2200x1870 millimeters from a cut 6x46"displays
    7.5 line matrix sizes -2250x1950 millimeters from a cut 6x47"displays or 8x42''
    8 line matrix sizes -2500x2200 millimeters from a cut 6x50 "displays
    8.2 line matrix of dimensions 2500x2200 millimeters from a cut 8x46"displays
    8.5 line matrix of dimensions 2500x2200 millimeters from a cut 6x52"displays
    8.7 line matrix of dimensions 3050x2850 millimeters from a cut 6x60 "display
    10 line matrix size 3130 x 2880 mm of which are cut 6x60 "display or 8x50''

    end product-LCD video panel
    http://wfogcq.bay.livefilestore.com...U-bXaoqu2UXQRFjIWmUkgXiQ/Display Module 2.jpg
    TYPE
    LCD TFT (Liquid Crystal Display Thin Film Transistor) - LCD displays with thin transistor) liquid crystal substance is shown between two glass plates. Light passes through crystals in accordance with the direction in which their molecules are orientirani. Polarizing filters manage light passing through them. Upon submission of tension, the molecules in the crystal occupy a position in which light -
    tion falls on the perpendicular polarizing filter. Tension forces of each liquid crystal pixel to work as a camera aperture - so stop or pass filter incident light on it.
    Liquid crystal display (LCD) technology is classified into 3 categories of TN, VA and IPS separated by the method of movement.

    Super Twisted Nematic LCs
    Super Twisted Nematic LCs

    http://lcdtech.no-ip.info/images/lcd.faq.04.jpg
    change the picture of TN at different angles vertically. There are well marked lightening look at the picture above and look for a strong darkening below.

    Amendment of the picture in horizontal panels in TN
    http://www.hdtv.ru/uploads/faq/1213185868_tn.jpg


    TN
    (Twisted Nematic) TFT or TN + Film TFT (Twisted Nematic + Film). The most common type of digital panel is based on technology called TN TFT. The term "layer" (Film) means an additional outer layer that allows to increase the usual viewing angle of 90 (45 from each of the two countries) to 140 degrees which were first put into production, have a simple structure but have a bad viewing angle / small /.
    TN-panels are cheap, fast, with poor color reproduction, viewing angle little practice it the most common types of LCD displays on the market. From a historical perspective is the first TN TFT LCD technology officially presented. When they added an additional outer layer through which to achieve a significant increase in horizontal and vertical visual angles. The prevalence of this type displays due to the low cost of production, which is why to this day continue to be produced. In older LCD displays are to notice a serious deficiency in terms of narrow vertical visual angles and inaccurate reproduction of black. Over the years, however, TN TFT technology has evolved rapidly and today, 15 - and 17-inch semi-LCD displays may offer more depth of color in displaying dark shades of gray to black. Another problem with this type of displays occurs whenever the first "dead pixels". The occurrence of dead pixels is quite normal technological process and occurs, if the pixel transistor "die". In TN TFT displays that leads to the emergence of the World "dead" area, which is highly visible to the naked eye.
    This type displays are characterized by poor tsvetopodavane, which is not critical in the case of choice for home and office. However, this makes them ineligible for professionals involved in prepress and design activities
    B-TN ( "Best TN"): Best TN is the newest technology of Samsung. Argue whether this is the best TN or that of LG Philips.

    Super-TFT and IPS (In-Plane Switching)
    was developed by Hitachi in 1996 to improve the viewing angle and color reproduction in TN panels. Although color reproduction is improved compared to CRT-th, the dynamic range is a real kind nisak.Edinstveniyat IPS placement of crystals. Molecules of liquid crystals are arranged in a horizontal position in the IPS panels, resulting in better picture, better color reproduktsiyai wider viewing angle.
    Most panels have a real 8-bit color per channel. IPS allows increasing the angle of vision to almost 170 degrees, using a more precise method to control the order of liquid crystals, which is the main contribution of this technology. However, contrast ratios remain at the same level as those who are in TN TFT technology, response time and even significant improvements narastnalo.Vapreki contrast ratios remain the same level of those who are in TN TFT technology, response time and pixel is even increased (in the first IPS models up to 50 ms!). The positive side to this method is that "dying" automatically become black pixels as opposed to pure white in TN TFT panels. IPS is a major improvement in cases in which the transistors burn management (and subsequently emerging "dead" pixels). With this technology, after "dying" pixel, instead of irritating the emergence of a bright point on the screen is black and it makes almost no impression on the end user.
    http://www.personal.kent.edu/~mgu/LCD/ips.htm
    In-Plane Switching
    Changes in the image of the IPS in the horizontal angle
    http://lcdtech.no-ip.info/images/lcd.faq.05.jpg
    The black color of the S-IPS in side view in cross violet
    http://www.hdtv.ru/uploads/faq/1213185847_ips.jpg

    http://www.ips-alpha.co.jp/en/technology/images/ips03.jpg

    http://bbsimg.pcpop.com/UpLoadImages/2009/7/21/0x0/e7aad225-aec1-4bc3-92a4-709aa4cfa482.jpg
    e-IPS is basically a more economical S-IPS panel that is cheaper to produce.
    Comprehensive List of S-IPS/H-IPS/e-IPS and other IPS Based LCD Monitors

    IPSα LCD Panel
    IPSα LCD Panel : LCD TV : Flat Panel TV : AV Products : HITACHI
    HITACHI : IPS-Pro(Evolving IPS technology)

    S-IPS (Super-IPS, Hitachi in 1998)-Technology Developing the IPS technology with namalenono response time of pixels. S-IPS technology is widely used in the panels of a size of 20 and upwards. LG.Philips is one of the two major producers of S-IPS based panels. LG technology developed further, announcing TW-IPS (True Wide - IPS), which In addition to good quality and quick response time was achieved and a significant increase in visual angles S-IPS displays.
    Overall, the IPS is designed for professional market segment where quality determines the purchase. Is also known variations in S-IPS (Super IPS) and DD-IPS (Dual Domain IPS), IPS-Pro In-Plane-Switching-Provectus / Provectus - means innovation in Latin /

    H-IPS (Horizontal IPS) - used for computer monitors, implemented in late 2006, is an improvement on its predecessor, S-IPS panel.
    pros and cons of H-IPS compared to S-IPS:
    Pros:
    * Less leakage of the backlight.
    * No purple color viewing angle
    * Less visible backlight leakage angle
    * Less noise or glitter seen on the surface of the panels (smooth, smooth)
    Cons:
    * Still backlight leakage in areas that are green.
    * Viewing angle is narrow
    http://www.personal.kent.edu/~mgu/pictures/ips.ht1.jpg

    AS-IPS (Advanced Super IPS): (Extended Super IPS): is also developed by Hitachi in 2002 and from dorazvitta LG.Philips.Ima podobrenie significant range of contrast to traditional S-IPS panels - second only after the S-PVA panels. Super contrast and response time, wide viewing angles, natural skin tones.

    A-TW-IPS -(Advanced True White IPS), was developed by LG.Philips LCD for NEC, is a custom S-IPS panel with one TW (True White) color filter that makes whites appear to be natural and to increase the color gamut. Used in professional photography.

    SA-SFT (Super-Advanced Super-Fine TFT): Professional IPS types with slightly modified color filters to improve the reproduction of natural colors. (Extremely expensive, used to monitor for professional photography)


    MVA: (Multi-Domain Vertical Alignment ) of the previous VA successor technologies.
    Multi-Domain Vertical Alignment
    E third technology developed by Fujitsu in 1998 as a compromise in both price and in the technical relationship between TN and IPS and is promising in terms of overcoming (at least as things look from a theoretical point of view) of the main drawbacks of LCD panels. In general, its advantages are focused in that it is able to improve the angle of vision (second behind S-IPS technology), good deep black color reproduction, and good depth, and fast response time of pixels through the use of RTC technologies. It carries out these advantages, because it has all the color elements on the panel, they are divided into cells and zones. They are formed by raised parts of the internal structure of the filters. The purpose of this design is to enable the liquid crystal to move in a direction opposite to the neighboring liquid crystals. This also allows the viewer to see the same degree of zasenchenost and quality of color, regardless of the angle of viewing.
    Each pixel is divided into four parts, so-called domains, in which the crystal is rotated to a different agli.Bez ispadam in detail I will only say that it is necessary to ensure good viewing angle: svetimosta of each domain is highly dependent on angle of viewing, but chetirirazlichno oriented domains in average give the same brightness regardless of whether they watch the top, side or bottom.
    One of the minor problems in the MVA-matrix is the existence of dark yavlyava arrival and departure, raspolozhenna of pixels in place of "stikovka" of neighboring domains - it reduces the overall transparency of the pixels, and that means lower efficiency of LCD-panela, which is so weak, something poryadaka 4% (that is, if all the panel shows the pure white color, it means that it passes through only 4% of the lights emitted from the backlight light).
    There are several generations of "next-generation" technologies based on MVA, including those produced by AU Optronics-P-MVA and A-MVA, and well known of Chi Mei Optoelectronics-S-MVA. MVA is currently manufactured at mass matrices.

    Amendment of the image horizontally on MVA panels
    http://www.hdtv.ru/uploads/faq/1213185893_xva.jpg

    PVA: (Patterned-ITO Vertical Alignment), typical Samsung panel. Suffers from the same shortcomings as those of the MVA, but this does smekta is characterized by very good contrast in the visualization of images.
    PVA and S-PVA (super patterned vertical alignment) are alternative versions of MVA technology. Developed separately and independently, they offer only peculiarity of MVA, but with greater range of contrast reaching up to 5000:1. By offering cheaper PVA panels use dithering and FRC, PVA and S-PVA offer better black and deep and wide viewing angle. S-PVA also offer less response time of pixels using modern technology CRT

    S-PVA: Super Patterned Indium Tin Oxide Vertical Alignment (silly). represents an improvement of PVA technology
    S-PVA are already true 8-bit and higher contrast than PVA. S-PVA-have two zones, each of which has four eight-domain domain subpiksel. Corners of the survey are nesimmetrichni, changing the range in look from one side is larger than the other.

    C-PVA: Circularly Polarized Vertical Alignments circular polarization / instead of linear /
    http://www.cdr.ust.hk/publications/research_pub/2006/SID39_2.pdf
    L1383-L1385

    ASV-Advanced Super View (ASV - Axially Symmetric Vertical Alignment) ASV is also called CPA. Sharp.Tova was developed by a matrix-type VA-vertcal aligment. ASV LCD TVs using panels provide 170 degrees viewing cone with a range of contrast more than Gholam 10:1, reaction time reaches 15ms.
    With the Power LCD molecules depart in all directions, as feyerverki for obespechavane out the best angle of view in all panels. Color screen depends less on the angle of viewing. Image is bright and coloring.

    UV²A UltraViolet induced multi-domain Vertical Alignment UV-MVA LCD

    http://ad.impress.co.jp/special/aquos1003/images/haikou3.gif
    Optical distribution- optical technology

    http://ad.impress.co.jp/special/aquos1003/images/newpanel1.jpg
    UV ² A - Efficiency flow of light is improved with the elimination of fish slots

    http://ad.impress.co.jp/special/aquos1003/images/newpanel2.jpg
    UV ² A panel eliminates failure / leak / light fish slots and thus have better black

    http://ad.impress.co.jp/special/aquos1003/images/outou.gif
    traditional МVA above and UV ² A below

    http://ad.impress.co.jp/special/aquos1003/images/kenbi.gif
    Micrography was delayed time. left UV²A right is MVA. Look be improved during the initialization-opening and release of new light stream.




    MANUFACTURERS OF THE LCD MATRIX
    In each segment has its own champions and medium. LCD-TVs - are no exception to the rule. Here present as famous brands, self-dealing with the development and implementation of various tehnologiy and OEM-manufacturers, selling under its own brand devices collected third factory preference Chinese. The two most famous of them-AU Optronics, a company belonging to Acer, and Chi-Mei Optoеlectronics. But this does not mean that their production is uncompetitive. Is rather the opposite. The expense of inferior price in the sales volumes of production of these companies exceeded sales of renowned brands, self-consumed in huge money. To the shortcomings of the OEM televisions can be classified functionally mediocre name terribly inconvenient for menu navigation settings in their disgusting Ergonomics Doo and other weaknesses. But the price, as is known, for the majority of Еuropeans - is the main criterion. Quality characteristics in television are at higher than average, and matrices are the same. Production of famous brands, as laid, are characterized by excellent equipped, there are various systems for noise reduction and improving functional characteristics of the picture. In a word - branding interest offset any shortcomings in the OEM-production, but the price of their facilities is remarkably higher. What to choose? Deciding. I will only enumerate the current market leaders. Top positions in global ratings of loan production companies Philips, Samsung and Sharp. These companies are engaged in developing not only the chassis, but also of the matrices. For example, Philips was until recently an apologist for S-IPS, but under pressure from market trends to switch to cheaper cheaper matrices xVA / but there are still models with S-IPS / now and in towards the ASV. Industrial Korean giant Samsung, in turn, is the developer of a variety of displays Owned - PVA (also kind of xVA). In full measure the same goes for Sharp, moisture giant funds in developing their own ASV-matrices and construction of plants for their production. Accordingly, the television producer of these three are the most expensive. Opravdanno you are expensive? On my sight completely. Quality must be paid, and Poker cheese, as is known, has only mishelovkata, and only the second mouse.
    Further in the list are companies such as Sony, LG, Toshiba and Panasonic. they put TVs in every way to the first three companies, but no laurels of parvoprohodtsi and innovators. So if your family budget allows, you better choose LCD-TV from the above listed producers. If not - then select the OEM. What? On my view, this is not so important. The main thing is, before the purchase to appreciate the ergonomics of the console of the remote control and menu quality localization apparata and, of course, be sure to be interested to guarantee obligations of the manufacturer.

    IPS Alpha Tehnology,Ltd -Joint Undertaking Hitachi Ltd и Matsupoopa-made IPSAlpha & IPS-Pro
    IPS Alpha Technology, Ltd.
    IPS Alpha Technology, Ltd. : Products

    Hitachi Display produce - IPS-Pro In-Plane-Switching-Provectus/Provectus - means innovation in Latin /matrices
    HITACHI : IPS-Pro(Evolving IPS technology)
    http://www.msc-ge.com/en/3592-www/v...Data/data/viii-1_2009-fd-4347.pdf?language=de

    Samsung-S-LCD produce S-PVA & PVA matrices
    SAMSUNG's Digital World
    SAMSUNG's Digital World
    http://www.samsung.com/global/business/lcdpanel/downloads/2007_Jan_product.pdf
    SAMSUNG's Digital World
    произвеждат основно S-PVA поставят ги в SONY,SAMSUNG,TCL
    http://www.action.com.tw/tech/lcd/samsung-tech.doc

    Chimei Innolux Corporation produce TN , LCS MVA , SMVA matrices
    http://www.msc-ge.com/en/3692-www/version/default/part/AttachmentData/data/ebrochure_2009Q2.pdf
    http://www.chimei-innolux.com/opencms/cmo/media_center/News/index.html?__locale=en&news_no=0
    http://www.chilintech.com.tw/profile_en.htm
    http://www.chilindisplay.com/


    CHUANGHWA PICTURE TUBES Ltd produce S-IPS matrices
    CHUNGHWA PICTURE TUBES, LTD. - Spot Light
    CHUNGHWA PICTURE TUBES, LTD. - TFT

    HannStar produce S-IPS matrices
    HannStar Display Corporation

    Hydis
    HYDIS

    InfoVision Optoelectronics(Kunshan) Co. Ltd.
    http://www.ivo.com.cn/ROOTE/pages/service/weizhi.jsp

    InnoLux
    ¸s³Ð¥ú¹q

    Sharp
    http://www.sharpsme.com/Page.aspx/e...b9f0-46e3359750f7/25_-_65_inch_/_64_-_165_cm/
    Liquid crystal display technology | Liquid crystal technologies | Kameyama Manufacturing | Kameyama | SHARP
    Sharp: TV Panels

    Index: SHARP Electronic Components
    Sharp Information Display Products join forces with RGB Communications
    CPA (Continuous Pinwheel Alignment)

    SVA-NEC Liquid Crystal Display Co. Ltd
    SVA-NEC
    http://www.msc-ge.com/en/3314-www/version/default/part/AttachmentData/data/LCD_NEWS_vol13.pdf

    Toshiba Matsupoopa Display Technology Co
    Toshiba Mobile Display


    AU Optronics (AUO)- Acer Unipac Optronics
    Welcome to AUO Online
    produced P-MVA и A-MVA -(Advanced MVA)
    AUO Online: Products


    LG DISPLAY produce S-IPS , H-IPS and е-IPS matrices
    Welcome to LG Display
    WXN - W widescreen, X-HD, N- 60Hz
    WUN - W widescreen, U-Full HD , N- 60Hz
    WUD - W widescreen, U-Full HD , D-120Hz/240Hz
    WUL - W widescreen, U-Full HD , L-led baclight


    Fujitsu AVIAMOâ„¢ (Full HD) - FUJITSU GENERAL
    MVA -


    AMPIRE CO.LTD.
    AMPIRE ´¹ªö¥ú¹q

    Chi Hsin Electronics Corp
    http://www.chihsin.com/en/product/mobile.asp


    Here are what sells to whom
    http://techon.nikkeibp.co.jp/article/HONSHI/20061117/123944/hitachi.jpg

    http://www.themolehole.eclipse.co.uk/panelshare.jpg
    • Thanks Thanks x 12
    Last edited: Aug 18, 2010
  2. hristoslav2

    hristoslav2 Member

    Joined:
    Jul 6, 2009
    Messages:
    559
    Trophy Points:
    43
    Ratings:
    +191
    TOSHIBA LCD TV

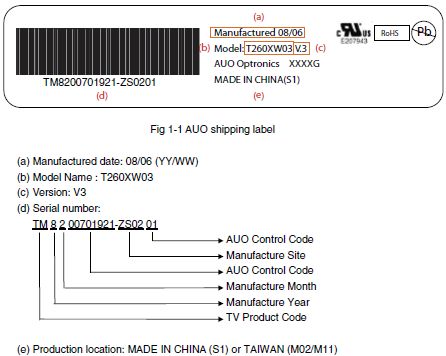

    Manufacturer of the matrix can be seen on the back etiquette
    the right of the serial number has a point / in the white box below the right /
    http://forum.setcom.bg/index.php?action=dlattach;topic=41551.0;attach=2015;image

    http://forum.setcom.bg/index.php?action=dlattach;topic=41551.0;attach=2082;image

    http://forum.setcom.bg/index.php?action=dlattach;topic=41551.0;attach=2521;image

    1.Models before mid-2008.
    ''S''---> SAMSUNG matrix
    ''C''---> SHARP matrix
    ''L''---> LG matrix

    2.Models after mid-2008.
    ''S''-> Sharp -> ASV
    ''К''-> SAMSUNG ->S-PVA
    ''А''-> AUO ->A-MVA
    "C"-> CMO->S-MVA
    ''L'' ->LG->S-IPS
    "H"-> IPS Alpha->IPS-PRO

    http://forum.setcom.bg/index.php?action=dlattach;topic=41551.0;attach=2521;image

    Examples:
    1.On boxes on TV
    http://www.nix.ru/autocatalog/lcd_tv_toshiba/81695_2248_draft.jpg

    http://forum.setcom.bg/index.php?action=dlattach;topic=41551.0;attach=2030;image
    http://forum.setcom.bg/index.php?action=dlattach;topic=41551.0;attach=2031;image

    or the sticker on the back panel / to see it required removing the rear panel of the TV /

    http://forum.ixbt.com/post.cgi?id=attach:62:11088:580:3
    http://forum.ixbt.com/post.cgi?id=attach:62:11088:580:2
    TOSHIBA put televisions in their S-PVA and A-MVA matrices. Z and ZF are guaranteed the presence of S-PVA matrix displey.From Z3030 series 52- only has S-PVA matrix. 42 and 47 have a S-IPS LG.
    ZF series of 40 and 46 inches are still with S-PVA.
    Difference is easy to see - the black is clearly better


    Toshiba Regza 52Z3030DG - S-PVA WCG (10bit), (LTA520HE04)
    Toshiba 42XV500 - S-IPS - LG Dispay (LGD)
    Toshiba 32AV635DR - H-IPS
    Toshiba 32AV615DG --H-IPS
    Toshiba 32AV605PG - H-IPS
    Toshiba 40RV525R - LTA400HA11 S-PVA Samsung (S-LCD)
    Toshiba 32RV635DB - LTF320HA09 S-PVA Samsung (S-LCD)
    Toshiba 40, 46, 52XV645U,640U - S-PVA Samsung (S-LCD)
    Toshiba 32RV635DB - LTF320HA09 S-PVA Samsung (S-LCD)
    Toshiba 42ZV635DG - S-IPS - LG Dispay (LGD)
    Toshiba 42RV635DG - S-IPS - LG Dispay (LGD)
    Toshiba 42XV635DG - S-IPS - LG Dispay (LGD)
    Toshiba 37XV635DR - S-IPS - LG Dispay (LGD)
    Toshiba 40RV525R LTA400HA11,07, S-PVA Samsung (S-LCD)
    Toshiba 40,46,52XV645U,640U - S-PVA Samsung (S-LCD)
    Toshiba 46SV685 - S-PVA Samsung (S-LCD)
    Toshiba 55SV685 - LTA550HF01 - S-PVA Samsung (S-LCD)
    Toshiba 40LV685DG - S-PVA Samsung (S-LCD)
    B ZV635 основен процесор е TC90417XBG , и Zoran медиапроцесор ZR36966PQCG-XG.
    Toshiba 40LV655PR - S-PVA Samsung (S-LCD)
    Toshiba 46ZV555DR - S-PVA Samsung (S-LCD)
    32AV605,32AV615,32AV625,32AV635 - G8LGD32V4, LC320WXN-SBB1
    -LK315T3LA51
    37AV615 - LC370WXN-SBB1 - S-IPS - LG Dispay (LGD)
    32RV625,32RV635 - LTA320HA04 - Samsung (S-LCD)
    40XV733G- LTA400HF11 Samsung (S-LCD)



    PHILIPS LCD TV
    How do we know what a matrix is placed on the TV?
    Code matrix it has a sticker affixed to the bottom right TV.Tri figures in the upper-right corner of the sticker or in the service menu / location maybe different from the picture /
    http://forum.ixbt.com/post.cgi?id=attach:62:12718:5251:1
    http://photofile.ru/photo/sundy/115289036/large/124350906.jpg
    http://photofile.ru/photo/sundy/115289036/large/124350914.jpg

    Models 2007
    Sets Type Panel Type Panel Code
    32PFL7762D/05 CMO: V315B1-L05 069
    32PFL7762D/12 CMO: V315B1-L05 069
    32PFL7962D/05 CMO: V315B1-L05 069
    32PFL7962D/12 CMO: V315B1-L05 069
    42PFL7762D/05 AUO: T420HW01V2 110
    42PFL7762D/12 AUO: T420HW01V2 110
    42PFL7962D/05 AUO: T420HW01V2 110
    42PFL7962D/12 AUO: T420HW01V2 110
    52PFL7762D/05 Sharp: LK520D3LZ13 098

    Sets Type Panel Type Panel Code (Dec)
    26PFL5322/10 LPL : LC260WX2-SLB2 045
    CMO : V260B1-L03 068
    AUO : T260XW03 V1 067
    26PFL5322/12 LPL : LC260WX2-SLB2 045
    CMO : V260B1-L03 068
    AUO : T260XW03 V1 067
    32PFL5322/10 LPL : LC320W01-SL06 046
    AUO : T315XW02 VD 091
    CMO : V315B1-L05 069
    32PFL5322/12 LPL : LC320W01-SL06 046
    AUO : T315XW02 VD 091
    CMO : V315B1-L05 069
    37PFL5322/10 LPL : LC370WX1-SLB1 071
    AUO : T370XW02 V5 072
    37PFL5322/12 LPL : LC370WX1-SLB1 071
    AUO : T370XW02 V5 072
    42PFL5322/10 LPL : LC420WX3-SLA1 073
    AUO : T420XW01 V8 076
    LPL : LC420WX5-SLD1 107
    42PFL5322/12 LPL : LC420WX3-SLA1 073
    AUO : T420XW01 V8 076
    LPL : LC420WX5-SLD1 107

    26PFL5322/12 LCD LPL LC260WX2-SLB2
    26PFL5322/12 LCD CMO V260B1-L03
    26PFL5322/12 LCD AUO T260XW03 V1
    26PFL7532D/12 LCD LPL LC260WX2-SLB2
    26PFL7532D/12 LCD CMO V260B1-L03
    26PFL7532D/12 LCD AUO T260XW03 V1
    32PFL5522D/12 LCD LG LC320W01-SL06
    32PFL5522D/12 LCD AUO T315XW02 VD
    32PFL5522D/12 LCD CMO V315B1-L05
    37PFL5522D/12 LCD LPL LC370WX1-SLB1
    37PFL5522D/12 LCD AUO T370XW02 V5
    42PFL5522D/12 LCD LPL LC420WX3-SLA1
    42PFL5522D/12 LCD LPL LC420WX5-SLD1
    42PFL5522D/12 LCD AUO T420XW01 V8
    42PFP5532D/12 PDP SDI 42 HD W2
    42PFP5532D/12 PDP LG 42 HD X4
    47PFL7632D/12 LCD LPL LC470WU4-SLA2
    50PFP5532D/12 PDP SDI 50 HD W2
    50PFP5532D/12 PDP LG 50 HD X4


    Models 2008
    code diagonal producer Where matrix is placed
    069 32 V315B1-L05 CMO 32PFL5403, 32PFL7603
    134 32 AUO VF 32 AUO 32PFL7403
    136 32 LC320WXN-SAB1 LGPH 32PFL5403, 32PFL7603, 32PFL7623
    147 32 HW01 VO 32 AUO 32PFL9603, 32PFL7803
    152 32 LK315D3LZ43 Sharp 32PFL9603
    153 32 LK315T3LZ93 Sharp 32PFL5403
    154 32 LC320WXD-SAB1 LGPH 32PFL7403
    156 32 T315XW02VL/05 AUO 32PFL3403
    171 32 D3LZ73 Sharp 32PFL9613
    129 37 T370HW02V3 AUO 37PFL5603
    141 37 LC370WUF-SAB1 LGPH 37PFL9603, 37PFL7403
    166 37 AUO V3 02 37" AUO 37PFL5603, 37PFL7603
    113 42 T420XW01V9 AUO 42PFL3403
    130 42 LC420WUE-SAA1 LGPH 42PFL7623, 42PFL5603, 42PFL7603
    131 42 T420HW01V4 AUO 42PFL5603, 42PFL7603
    132 42 V420H1-L09 CMO 42PFL5603
    142 42 LC420WUF-SAA1 LGPH 42PFL7403, 42PFL7423, 42PFL7433, 42PFL9603
    143 42 LC420WUF-SAC1 LGPH 42PFL9703
    149 42 AUO HW02 V1 AUO 42PFL9803
    135 47 LC470WUE-SAA1 LGPH 47PFL5603, 47PFL7603
    145 47 LC470WUF-SAA1 LGPH 47PFL7403, 47PFL9603
    146 47 LC470WUF-SAC1 LGPH 47PFL9703
    159 47 V470H1-L05 CMO 47PFL5603
    150 52 52PFL9703


    32PFL3403D_12_1 T315XW02VL/05 код 156
    32PFL5403D_10_1 V315B1 L05 код 069
    32PFL5403D_12_1 V315B1 L05 код 069
    32PFL5403D_10_2 LC320WXN-SAB1 код 136
    32PFL5403D_12_2 LC320WXN-SAB1 код 136
    32PFL5403D_79_1 V315B1-L05 код 069
    32PFL5403D_79_2 LC320WXN-SAB1 код 136
    32PFL5403H_10_1 V315B1 L05 код 069
    32PFL5403H_10_2 LC320WXN-SAB1 код 136
    32PFL5403H_10_3 LK315T3LZ93 код 153
    37PFL5603D_10_1 T370HW02 V3 код 129
    37PFL5603H_10_1 T370HW02 V3 код 129
    42PFL3403D_12_1 T420XW01V9 код 113
    42PFL5603D_10_1 Т420HW01 V4 код 131
    42PFL5603D_10_2 LC420WUE - SAA1 код 130
    42PFL5603D_10_3 V420H1-L09 код 132
    42PFL5603D_12_1 T420HW01 V4 код 131
    42PFL5603D_12_2 LC420WUE - SAA1 код 130
    42PFL5603D_12_3 V420H1-L09 код 132
    42PFL5603D_79_3 T420HW01V4 код 131
    42PFL5603D_79_5 LC420WUE-SAA1 код 130
    42PFL5603H_10_1 Т420HW01 V4 код 131
    42PFL5603H_10_2 LC420WUE - SAA1 код 130
    42PFL5603H_10_3 V420H1-L09 код 132
    42PFL5603S/60_1 Т420HW01 V4 код 131
    42PFL5603S/60_2 LC420WUE - SAA1 код 130
    47PFL5603D_10_1 LC470WUE - SAA1 код 135
    47PFL5603D_10_2 V470H1-L05 код 159
    47PFL5603H_10_1 LC470WUE - SAA1 код 135
    47PFL5603H_10_2 V470H1-L05 код 159

    32PFL5403D код 136 LC320WXN - SAB1
    42PFL5603D код 130 LC420WUE - SAA1
    47PFL5603D код 135 LC470WUE - SAA1



    Мodels 2009
    [pre]
    Коd Diag. Матrix producer in models
    136 32 LC320WXN LGPH 32PFL3403181
    104 32 32PFL3604
    32 32PFL7404, 32PFL9604
    199 32 D3GA1332 Sharp 32PFL5604, 32PFL5624
    210 32 Sharp 32PFL5404,32PFL3904
    171 32 D3LZ73 Sharp 32PFL5624H
    221 32 D3LZ93 Sharp 32PFL7404H
    181 32 LC320WUF-SBN1 LGPH 32PFL7404,32PFL8404,32PFL9604
    161 37 AUO HW02 V9 AUО 37PFL8404,37PFL9604
    168 37 AUO 37PFL9604
    201 37 LC370WUE-SBA1 LGPH 37PFL5604
    215 37 LC370WUG SBA 1 LGPH 37PFL5604
    40 LK400D3LA33 Sharp 40PFL9704
    130 42 LC420WUE LGPH 42PFL3403
    138 42 LC420WXE LGPH
    142 42 LC420WUF LGPH
    182 42 LC420WUF-SBA1 LGPH 42PFL5704
    202 42 LC420WUF LGPH 42PFL5604,42PFL5624
    183 42 LC420WUF-SBN1 LGPH 42PFL7404, 42PFL8404
    196 42 LGPH 42PFL9664
    195 46 LK460D3LA43 Sharp 46PFL9704
    135 47 LC470WUE LGPH
    137 47 LC470WUF LGPH
    185 47 LC470WUF-SBA1 LGPH 47PFL5704
    186 47 47PFL7404, 47PFL8404
    203 47 47PFL5604
    151 52 LK520D3LZ93 Sharp 52PFL5704
    158 52 LK520D3LZ83 Sharp
    188 52 LK52003LA63 Sharp 52PFL5704
    208 52 52PFL7404
    52 LK520D3LA73 Sharp 52PFL9704
    56 LK558Z3LA1P Sharp 56PFL9954
    180 56 LK558Z3LA13 Sharp 56PFL9954

    Cod and models
    Code:
    Код     Тип      Марка            Размер          Резолюция           Модел матрица
    003     LCD       LPL              30            768p 1280         LC300W01-A3P7
    004     LCD       LPL              37            768p 1366         LC370W01-A6
    005     LCD       LPL              42             768p 1366        LC420W02-А6
    006     LCD      Sharp           32             768p 1366        LQ315T3LZ13 (ASV1),LQ315T3LZ23 (ASV2.2)(5Vtcon),LQ315T3LZ23 (ASV2.2)(12Vtcon)
    009     LCOS    XION                             720p 1280
    010     LCD       AUO            30             768p 1280         T296XW01,T296XW01V2,T296XW01V3
    011     LCD       LPL             32             768p 1366          LC320W01-A6K1
    012     LCD       AUO            32             768p 1366          T315XW01V5
    013     LCD      Sharp          37              768p 1366         LQ370T3LZ21 (ASV2),LQ370T3LZ44 (ASV2.2)
    014     LCD       LPL             42             1080p 1920        LC420WU1-SL01
    019    LCOS    VENUS                            720p 1280
    020    LCOS    VENUS                           1080p 1920
    021     LCD       LPL             26               768p 1366         LC260WX2-SL01
    022     LCD       LPL             32               768p 1366         LC320WX2-SL01
    028     LCD      Sharp          37              1080p 1920         LQ370D3LZ13 (ASV2.2)
    029     LCD      AUO            32                768p 1366         T315XW01-V3
    030     LCD      Sharp          37              1080p 1920         LW370D3LZ1x (ASV 3 first samples)
    031     LCD      Sharp          37              1080p 1920         LK370D3LZ33 (ASV 3)
    032     LCD       LPL             20              768p 1366           LC200WX1-SL01
    033     LCD       QDI            23               768p 1366          QD23HL02 REV01,QD23HL02 REV01(03)
    040     LCD      Sharp          32               768p 1366          LK315T3LZ43 (ASV 2.3)
    041     LCD        LPL           42               768p 1366           LC420WX2-SLA1
    043     LCD      Sharp         37               768p 1366           LK370T3LZ63 (ASV 3)
    044     LCD      Sharp         37               768p 1366           LK370T3LZ53 (ASV 2.3)
    045     LCD       LPL            26               768p 1366           LC260WX2-SLB2
    046     LCD       LPL            32               768p 1366           LC320W01-SL06
    047     LCD       LPL           42                768p 1366           LC420W02-SLB1
    048     LCD       QDI           26                768p 1366          QD26HL02-REV01,QD26HL02-REV02
    049     LCD       AUO          26                768p 1366          T260XW02V4
    050     LCD       AUO          32                768p 1366          T315XW01V9
    051     LCD       AUO          37                768p 1366          T370XW01V1
    052     LCD       AUO          32                768p 1366          T315XW02V5
    053     LCD        LPL          37                768p 1366           LC370WX1-SL04
    055     LCD        LPL          42              1080p 1920          LC420WU2-SLA1
    056     LCD        LPL          47              1080p 1920          LC470WU1-SLC2
    057     LCD        LPL          42                768p 1366          LC420WX3-SLA2
    058     LCD        LPL          42              1080p 1920          LC420WU5-SLA1
    059     LCD        LPL          42              1080p 1920          LC420WU2-SLA2
    060     LCD      Sharp        37              1080p 1920          LK370D3LZXX
    061     LCD        LPL          42              1080p 1920          LC420WU4-SLB1
    062     LCD        LPL          32                768p 1366          LC320WX5-SLB1
    063     LCD        LPL          47              1080p 1920          LC470WU2-SLA1(WCG)
    064     LCD        LPL          42              1080p 1920          LC420WU2-SLB1
    065     LCD        LPL          37              1080p 1920          LC370WU2-SLA1
    067     LCD       AUO         26                768p 1366           T260XW03V1
    068     LCD      CMO         26                768p 1366           V260B1-L03
    069     LCD      CMO         32                768p 1366           V315B1 L05
    070     LCD      CPT          32                768p 1366           CLLAA320WB02P
    071     LCD      LPL           37                768p 1366           LC370WX1-SLB1
    072     LCD      AUO         37                 768p 1366           T370XW02V5
    073     LCD      LPL          42                 768p 1366            LC420WX3-SLA1
    074     LCD      LPL          42                 768p 1366            LC420WX4-SLA1
    075     LCD    Sharp        52               1080p 1920            LK520D3LZ33
    076     LCD     AUO          42                768p 1366            T420XW01V8
    077     LCD     AUO         42                 768p 1366            T420XW
    078     LCD     AUO         42               1080P 1920            T420HW01 V0
    079     LCD     CMO        42                 768p 1366            V420B1
    080     LCD     CMO        42               1080P 1920            V420H1
    081     LCD      LPL         47               1080P 1920            LC470WU4-SLA2
    082     LCD      AUO        47               1080P 1920            T470HW01 V0
    087     LCD    Sharp       37              1080p 1920              LK370D3LZ43 (ASV3.0)
    088     LCD    Sharp       37               768P 1366              (ASV2,3 VE1)
    089     LCD     AUO        42               768p 1366               T420XW01V5
    090     LCD     AUO        26               768p 1366               T260XW03V1
    091     LCD     AUO        32               768P 1366               T315XW02VD
    092     LCD      LPL        42               768p 1366                LC420WX2-SLA1
    093     LCD      LPL        42             1080p 1920               LC420WU2-SLA1
    095     LCD    Sharp       37             1080p 1920               LK370D3LZ23
    096     LCD      LPL        37             1080p 1920               LC370WU3SLB1
    097     LCD      LPL        42             1080p 1920               LC420WU5-SLB1
    098     LCD    Sharp       52             1080p 1920               LK520D3LZ13
    099     LCD      LPL        42             1080p 1920               FHS FMB NWCG EEFL reserved
    100     LCD                   42            1080p 1920               3D under development
    101     LCD      LPL         47            1080p 1920                LC470WU2 SLB1
    102     LCD    Sharp        32             768p 1366                LK315T3LZ53
    103     LCD      LPL         20             480p 640                  LC201V02-SDB1
    104     LCD     AUO         20             600p 800                 A201SN02 V5
    105     LCD     CMO        19              900p 1440               TPM190A1-L02
    106     LCD     AUO        23              768p 1366                T230XW01V3
    107     LCD      LPL        42              768p 1366                LC420WX5-SLD1
    108     LCD     AUO        37            1080p 1920                T370HW02 V1
    109     LCD      LPL        47              768p 1366                LC470WX1-SLA2
    110     LCD     AUO        42            1080p 1920                T420HW01v2
    111     LCD     AUO        32              768p 1366                T315XW02VF
    112     LCD     AUO        37              768p 1366                T370XW02-V9
    113     LCD     AUO        42              768p 1366                T420XW01-V9
    114     LCD     LPL         37             1080p 1920                LC370WU3-SLE1
    115     LCD     LPL         37             1080p 1920                LC370WU1
    116     LCD     LPL         32               768P 1366                LC320W01-SLB1
    117     LCD     AUO        42             1080p 1920                Inverterless
    118     LCD     LPL         42               768p 1366                LC420WX07 - SLB1
    119     LCD     LPL         32               768p 1366                LC320WX5-SLB2
    120     LCD     LPL         42               768p 1366                LC420WX8
    121     LCD    CMO         47             1080P 1920                V470H1-L03
    122     LCD    CMO         57             1080p 1920                V570H1
    123     LCD    CMO         42             1080p 1920                V420H1-LH1
    124     LCD    CMO         47             1080p 1920                V470H1-L02 ??
    125     LCD    CMO         52             1080p 1920                V520H1-YY
    126     LCD    CMO         52             1080p 1920                V520H1-XX
    127     LCD     LPL         42              1080p 1920                LC420WU?
    128     LCD     LPL         37               768p 1366                LC370WX4-SLB1
    129     LCD    AUO         37              1080p 1920               T370HW02 V3
    130     LCD     LPL         42              1080p 1920               LC420WUE - SAA1
    131     LCD    AUO         42              1080p 1920               T420HW01 V4
    132     LCD    CMO         42              1080p 1920               V420H1-L09
    133     LCD    CMO         47              1080p 1920               V470H1-L03
    134     LCD    AUO         32               768p 1366                T315XW02VF/ new gamut
    135     LCD     LPL         47               1080p 1920               LC470WUE - SAA1
    136     LCD     LPL         32                768P 1366                LC320WXN - SAB1
    138     LCD     LPL         42                                              LC420WXE-SA A 1
    139     LCD     LPL         37                                              LC370WXE-SA A 1
    140     LCD    Sharp       32               1080p 1920               LK315D3LZ43 (LVDS 51)
    141     LCD     LPL         37               1080p 1920               LC370WUF-SA B1
    142     LCD     LPL         42               1080p 1920               LC420WUF SA A 1
    143     LCD     LPL         42               1080p 1920               LC420WUF SAC1
    144     LCD     LPL         42               1080p 1920               LC420WUF SNA 1(super narrow bezel)
    145     LCD     LPL         47               1080p 1920               LC470WUF SA A 1
    146     LCD     LPL         47               1080p 1920               LC470WUF SAC1
    147     LCD    AUO         32               1080p 1920               T315HW01V 0
    148     LCD    AUO         42               1080p 1920               T420HW01V 3
    149     LCD    AUO         42 LED BL     1080p 1920               T420HW02V 1
    150     LCD   Sharp        52               1080p 1920               LK520D3LZ9P
    151     LCD   Sharp        52               1080p 1920               LK520D3LZ93
    152     LCD   Sharp        32               1080p 1920               LK315D3LZ43 (LVDS41)
    153     LCD   Sharp        32                768p 1366                LK315T3LZ93
    154     LCD    LPL          32                768p 1366                LC320WXD-SA B1
    155     LCD    AUO         32                768p 1366                T315XW02VD01
    156     LCD    AUO         32                768p 1366                T315XW02V L
    157     LCD    AUO         26                768p 1366                T260XW03-V 3
    158     LCD   Sharp        52               1080p 1920                LK520D3LZ83
    159     LCD    CMO        47                1080p 1920               V 470H1-L05
    160     LCD    CMO        26                 768p 1366                V 260B1-L11
    161     LCD    AUO         37               1080p 1920                T370 HW02-V 9
    162     LCD   Sharp        32               1080p 1920                LK315D3LZ63
    163     LCD     LPL         37                1080p 1920               LC370WUD-SA B1
    164     LCD     LPL         47                1080p 1920               LC470WUD-SA A 1
    165     LCD   Sharp        52                1080p 1920               LK520D3LZ13
    166     LCD    AUO         37                1080p 1920               T370HW02-V 302
    167     LCD    AUO         26                 768p 1366                T260XW02-V 00
    168     LCD    AUO         42                1080p 1920               T420HW03V 0  (Essence)
    169     LCD    CMO        22                 1050p 1680               M220Z1-L03
    170     LCD    AUO        42                  768p 1366                T420XW01-VD
    171     LCD   Sharp       32                 1080p 1920                LK315DZLZ73
    172     LCD     LPL        32                   768p 1366                LC315WXD-SA B1
    173     LCD    AUO        32                   768p 1366               T315XW02V L05
    174     LCD    CMO        22                   768p 1366               V216B1-L01
    175     LCD    AUO        37                 1080p 1920               T370HW02-V 6
    176     LCD    AUO        37                   768p 1366               T370XW02-v9
    177     LCD    AUO        32                 1080p 1920               T315HW01V 00?
    178     LCD   Sharp       32                   768p 1366               LK315T3LA 33
    179     LCD    CMO        32                  768p 1366               V315B3-L05
    180     LCD   Sharp       56                  1080 2560                LK558Z3LA 13
    181     LCD    LGD         32                 1080 1920                 LC320WUF-SBN1
    182     LCD    LPL         42                  1080 1920                LC420WUF-SBA 1
    183     LCD    LGD        42                  1080 1920                 LC420WUF-SBN1
    184     LCD    LPL         47                  1080 1920                LC470WUE-SBA 1
    185     LCD    LGD        47                  1080 1920                LC470WUF-SBA 1
    186     LCD    LPL         47                  1080 1920                LC470WUF-SBN1
    187     LCD   Sharp      52                   1080 1920                LK520D3LA 13
    188     LCD   Sharp      52                   1080 1920                LK520D3LA 23
    189     LCD    AUO       37                   1080 1920                T370HW03V 2 ?
    190 WhiteLED  AUO       42                  1080 1920                 T420HW05V 1 ?
    191 WhiteLED  Sharp     52                  1080 1920                 LK520D3LA 73 ?
    192     LCD    LPL         42                 1080p 1920                LC420WUF SAC1
    193 SidelitLED  Sharp     46                  1080 1920                  ? ?
    194 WhiteLED  Sharp     40                  1080 1920                 LK400D3LA 33 ?
    195 WhiteLED  Sharp     46                  1080 1920                 LK460D3LA 43 ?
    196    LCD      LGD       42                  1080 1920                 LC420WUF-SBM2
    197    LCD      LGD       47                  1080 1920                 LC470WUF-SBM2
    198    LCD      LGD       19                   768 1366                  LC190WH1-TLC1
    199    LCD     Sharp      32                  1080 1920                 LK315D3GA 13
    200    LCD      LGD       32                  1080 1920                 LC320WUG-SBA 1
    201    LCD      LGD       37                  1080 1920                 LC370WUE-SBA 1
    202    LCD      LGD       42                  1080 1920                 LC420WUG-SBA 1
    203    LCD      LGD       47                  1080 1920                 LC470WUE-SBA 1
    204    LCD      LGD       32                  1080 1920                 LC320WUE-SA A 1
    205    LCD      LGD       42                  1080 1920                 LC420WUE-SBA 1
    206    LCD      LGD       22                  1080 1920                 LC215WUE-TBA 1
    207    LCD      LGD       27                  1080 1920                 LC270WUE-TBA 1
    208    LCD     Sharp     52                  1080 1920                  LK520D3LA 63
    209    LCD     Sharp     52                  1080 1920                  LK520D3LA 53
    210    LCD     Sharp     32                   768 1366                   LK315T3LA 53
    211    LCD      LGD       22                   768 1366                  WXE-TBA 1
    212    LCD      LGD       26                  1080 1920                  LC260WUE-SBA 1
    213    LCD      LGD       32                  1080 1920                  LC320WXE-SBA 1
    214    LCD      LGD       26                  1080 1920                  LC260WXE-SBB1
    215    LCD      LGD       37                  1080 1920                  LC370WUG-SBA 1
    216    LCD      LGD       42                  1080 1920                  TBD
    217 SidelitLED   Sharp    40                  1080 1920                  LK400D3LA 43
    218    LCD      LPL        32                  768 1366                    LC320WXD-SA B1
    219    LCD      LGD       32                  1080 1920                   LC320WUG-SBA 2
    220    LCD      LGD       42                  1080 1920                   LC420WUG-SBA 2
    221    LCD     Sharp      32                  1080 1920                  LK315D3LZ93
    222    LCD     Sharp      42                  1080 1920                  LK420D3LZ43
    223    LCD     Sharp      32                  1080 1920                  LK315D3GA 23
    224    LCD      LGD        42                  1080 1920                  LC420WUF-SBM2
    225 SidelitLED  Sharp    40                  1080 1920                  LK400D3LA 43

    Codes and models matrix model 42-52PFL5704D.
    http://forum.ixbt.com/post.cgi?id=attach:62:14399:68:1

    40PFL9704H Sharp LK400D3LA33
    46PFL9704H Sharp LK460D3LA43
    52PFL9704H Sharp LK520D3LA73
    56PFL9954H Sharp LK558Z3LA1P,LK558Z3LA13




    SAMSUNG LCD TV
    How do we know what a matrix of our TV?
    Can often be seen in the matrix type ventilation grills above the rear right -
    H40F1-93 ..? / 40-inch / F-100Hz / 1
    for models manufactured before 2009
    See the big label on the back of the TV
    http://forum.ixbt.com/post.cgi?id=attach:62:13959:40:1
    If, after the Model stands letter
    A - AU Optronics (AUO) A-MVA
    B - Chi Lin Technology (CLT)
    C - Chi Mei Optoelectronics (CMO)
    I - LG Display IPS (LGD)
    P - Chunghwa Picture Tubes (CPT)
    S - Samsung S-PVA (S-LCD)
    Н - Samsung S-PVA (3D)
    Q - IPS Alpha Technology LTD (Hitachi & Panasonic) IPS Alpha/IPS Pro
    http://radikal.ru/F/s54.radikal.ru/i146/0904/bf/ece505454987.jpg
    The second letter indicates the particular version of the panel. Figures of Melk modifications.


    There is a second label to the buttons exactly control.Look 3-th row-Version
    http://forum.ixbt.com/post.cgi?id=attach:62:13959:40:2

    http://forum.ixbt.com/post.cgi?id=attach:62:13959:4609:2
    On it are inscribed the model and serial number version-Version AA05 or SS08
    There is indicated the version of the matrix (it can be equal in number, but different in essence a different series)
    The first letter in the version given for manufacturer AA05-AUO SS08-Samsung
    The second letter indicates a specific version of the panel AA05-A-MVA SS08-S-PVA
    CN02-this is a matrix of the S-MVA CMO
    first letter A indicates the manufacturer AUO. second letter indicates the type A-MVA and the figures after her 01 - this is the batch number of the matrix

    SS01 /02,03,04/ or SQ01 (02,03,04) S-PVA from Samsung
    CN01, CN02 - S-MVA from CMO
    BN01 ,BN02 (05,06,07) - S-MVA from CMO
    АА01 (02,03,04),АC02(04)- A-MVA from AUO
    AC02 - new panel A-MVA3 from AUO
    BA01 - panel from AUO with backlit from СHILIN
    I102 и I203 - panel IPS-Pro from IPS-Alphа

    SQ 01-In the old series are indicated with Q and 10bit panels were preferable, when the new models may not be so, because May is only 8bit to make as I know.

    The difference in matrices Study on servicing various names in the menu.
    For each model and diagonal panels can be different.

    How to read the abbreviation of the panel?
    Panel 40A SC100FV (LTF400HC05).
    What are the last letters F, FV, FH, etc.
    F-type panel means in a block built FRC.
    V - Value simplified model
    earlier figures set out the Color Range, and now we know
    has info on current series for external customers, but customised for production Owned (LTF for SAMSUNG and LTZ for Sony).

    How to read matrix Type 40A1UF0C ?
    40 - Inch
    A - Vendor (A - Samsung, D - CMO, L -AUO, I - CPT)
    1 - Panel frequence (6 -50/60Hz ; 1 - 100/120Hz ; 2 - 200/240Hz)
    U - Panel (A - AntiGlare ; T - TN ; U - Ultra Clear)
    F - Resolution (F - FHD, H - HD, U - UD)
    0 - Panel 1st/2nd (1st:0, 2nd:1…)
    C - BLU (BackLight Unit) C - CCFL, L - LED, E - Edge LED

    How do we know what a matrix is placed on the TV?
    models for 2009 - the matrices can be understood by the second sticker
    Russian and Hungarian only service menu, no second sticker
    When choosing a look at the little sticker on the side, what a matrix is placed in TV
    http://img4.imageshack.us/img4/957/dsc01112t.jpg
    last-line version
    AA02 is the picture that is a A-MVA AUO
    first letter is the second version, the manufacturer of the panel
    The letters marked with backlight PANEL
    Watch to write SS08 or SQ01 / 02,03 / that is S-PVA matrix Samsung
    There are AA02 with V650 and V651-AUO with SS08-S-PVA
    BN-matrix that is CMO
    I102 and I203 are IPS-alfa matrix
    watch the third row-Version-CN, AA, SQ, etc.



    SHARP LCD TV
    to 2008 years placed the matrices of the CMO and its production.
    This year only put their matrices
    http://www.sharp-world.com/products/device/catalog/pdf/ia_lcd200810_e.pdf
    http://www.sharp-world.com/products/device/catalog/pdf/sharp_device200901_e.pdf

    http://www.sharpsma.com/Page.aspx/americas/en/bc0f2f31-5c69-4607-aee7-7484c5edbdd6/Product_Groups/
    http://www.sharpsme.com/Page.aspx/europe/en/bc0f2f31-5c69-4607-aee7-7484c5edbdd6/Product_Groups/




    LG LCD TV

    32LG7000 matrix AUO
    32LG5700 matrix LPL S-IPS
    42LG3000 matrix LPL S-IPS
    42LG5000 matrix AUO
    42LG6000, 6100 matrix LPL S-IPS

    http://209.85.135.132/search?q=cach...7lh3000 eefl or ccfl&cd=1&hl=ru&ct=clnk&gl=ru

    LCD Panel Specification
    47/42/37/32 LH7000- LGD 10Bit CCFL
    LH5000- LGD 10Bit 47 "CCFL , 32”/37”/42 – EEFL
    LH4900 - LGD 10Bit 32”/37”/42 – EEFL, 47” - CCFL
    LH4000 - LGD 10Bit 47 "CCFL , 32”/37”/42 – EEFL
    LH3000- 32"/37"/42" - (LGD/ AUO), 47" LGD Only //LGD(10Bit) (AUO-8Bit) // 47 "CCFL ,32”/37”/42 – EEFL
    LH2000 - LGD/AUO (37" LGD Only LC370WXN) ,22" (LGD/COM), 19" (LGD/AUO) // 42/37/32 (EEFL), 26"-19" CCFL // 8Bit

    LU5000 - LGD , CCFL , 8Bit
    LU4000 - 22" (AUO MVA), 19" (LGD TN) , CCFL , 8Bit


    Plasma panels
    model tv panel
    LG 50PS8000 PDP50H30001
    LG 42PG6000 PDP42G10235
    LG 32PG6000 PDP32G10012
    http://ses.sharpmicro.com/Page.aspx/ses/en/bc0f2f31-5c69-4607-aee7-7484c5edbdd6/Product_Groups/




    SONY LCD TV
    LCD panels placed at Sony can check by looking in the rear grille
    (T1 or T2 - better T1, T2-old and a little problem - it details of avforums).
    T2: 4000001-4001427, 4300001-4310869, 4600001-4600515, 4800001-4801325 - these are the series.
    If your series does not fall into one of those spaces - it have T1!

    Samsung LCD components have product codes beginning with "LTY".

    55EX500 LTY550HJ01
    46EX500 LTY460HJ01
    40EX700 LK400D3LA4B Sharp
    40EX500 LTY 400HF06 SLCD
    46EX500 LTY 460HJ01 SLCD
    32EX500 LTY 320HF01 SLCD
    37EX500 T370HW03 AUO
    46EX402 LTY 460HM01 SLCD
    37EX402 T37HW03 AUO
    32EX402 LTY 320HM01 SLCD
    32EX302 LTY 320AP04 SLCD
    55EX500 LTY 550HJ01 SLCD

    SONY KDL-32V2500 LTY320WS-LH3
    SONY KDL-37W5500 T370HW02 AU Optronics
    SONY KDL-40W4500 LTY400HC02
    SONY KDL-40W5500 LTY400HF05A02 (S-LCD)
    SONY KDL-40V5100 LTY400HF05
    SONY KDL-32V4500 LTZ320AA01 S-LCD
    SONY KDL-32V5500 LTY320HA02
    SONY KDL-40W4000 LTY400HA05
    SONY KDL-40W4000 (05/2008) has panel S-LCD LTY400HA05, from 11/2008 Sony changed to panel LTY400HA10
    SONY 46Z4100 A-MVA


    KLV-S32A10 LTY320W2-L02
    KDL-40XBR4 LTY400HC01
    KDL-46XBR2 LTY460HS-LH2
    KLV-S32A10 LTY320W2-L02
    • Thanks Thanks x 7
    Last edited: Aug 7, 2010
  3. hristoslav2

    hristoslav2 Member

    Joined:
    Jul 6, 2009
    Messages:
    559
    Trophy Points:
    43
    Ratings:
    +191
    PANASONIC LCD

    Placed in a matrix model Panasonic LCD TV can be seen on the box.
    http://i167.photobucket.com/albums/u144/Delpippo/IMG_2214.jpg

    If it appears In-Plane-Switching-Panel by Ips Alpha Tehnology Ltd. means that the matrix is IPS-Pro of IPS-Alpha
    If it appears In-Plane-Switching-Panel means that the matrix is S-IPS of LGDisplay


    Models with IPS-Pro matrix are marked with the sign-IPSα panel, IPS Alpha panel or In-plane switching Panel by IPS Alpha Technology, Ltd.

    Panasonic TX-L42D25E and TX-L37D25E with S-IPS matrixes of LGD.
    http://www.avforums.com/forums/atta...odels-placed-pfilips-42pfl7404-8404_s-ips.jpg

    L22D28/19D28 guess with the new matrix H-IPS (E-IPS)
    http://www.avforums.com/forums/atta...at-models-placed-toshiba32av615dg_1.jpg?stc=1

    IPS Alpha Tehnology, Ltd - a joint venture of Hitachi Ltd and Matsupoopa-made IPSAlpha and IPS-Pro-Matrix
    http://www.ips-alpha.co.jp/en/index.html
    http://www.ips-alpha.co.jp/en/products/index.html

    What is IPS matrix?
    A: get acquainted with the technology here
    http://www.ips-alpha.co.jp/en/technology/ips.html

    Matrix for Europe are made in the Czech Republic
    http://www.ips-alpha-eu.cz/cz/o-spolecnosti/kdo-jsme-a-co-delame/
    http://displayblog.wordpress.com/2007/07/06/ips-alpha-czech-republic-construction-completed/

    Paste Matrix
    In the series LM and LE - S-PVA (SAMSUNG)
    In the series LX and LZ - IPS (Matsupoopa-Hitachi)
    malayziiskite 32lx80 - S-PVA Samsung
    Panasonic TX-R32LX85 - IPS-Alpha Panasonic

    except in TX-LR26X10 and TX-LR19X10 - they are placed VA matrices.
    In all other LCD - IPS Alpha and IPS-Pro
    In the new 42 "LCD matrices are S-IPS LG / Panasonic until April 2010 did not produce more than 37 dimensions /
    Panasonic TX-L42S10E - Super-IPS LGDisplay
    Panasonic TX-L37S10E - IPS-Pro - IPS-Alpha
    Panasonic TX-L32C10 - Super-IPS-LGDisplay
    Panasonic TX-L32H10 - IPS-Alpha-Panasonic
    Panasonic TX-L32G20 - IPS-Alpha-Panasonic
    Panasonic TX-L37G20 - IPS-Alpha-Panasonic
    Panasonic TX-L42G20 - Super-IPS-LGDisplay
    • Thanks Thanks x 3
    Last edited: Aug 7, 2010
  4. adtomov

    adtomov Member

    Joined:
    Oct 19, 2008
    Messages:
    140
    Trophy Points:
    31
    Ratings:
    +71
    Samsung LCD panels in pictures

    Samsung - LE40B652 "SQ02" (S-PVA), 50% grey
    [​IMG]
    Samsung - LE40B652 "SQ02" (S-PVA), 100% grey
    [​IMG]
    Samsung S-PVA (Sony W4500 - W5500 series), Toshiba 52Z3030D(LTA520HE04):
    [​IMG]
    Samsung - (y.2009 new type) - Samsung LE32B550 (SQ02), LE40B551 (SQ02), LE40B530 (SQ01), Toshiba 40LV685DG (LTA400HA11), Toshiba32RV635, Sony KDL-32V5500:
    [​IMG]
    Samsung (y.2009 new type S-PVA, "SQ01", 200-240 Hz) Samsung LE**B750 series:
    [​IMG]
    Sasmsung (y.2009 new type S-PVA, 200-240 Hz) - Sony Z4500-Z5500 series:
    [​IMG]
    Samsung PVA - Sony KDL32EX302 (LTY320AP04, thanks to ffdf)
    [​IMG]
    Samsung (y.2010 - new type S-PVA)- Sony KDL55EX500 (LTY550HJ01):
    [​IMG]
    Samsung (y.2010 - new type S-PVA) - Samsung UE40C7000 ("SQ01", LTF400HQ01(Thanks to ffdf))
    [​IMG]
    Samsung S-PVA) - Toshiba 55WL753G (LTA550HQ01), Toshiba 46WL753G (LTA460HQ01), same subpixel topography: 46SL733 (LTA460HJ05), 46XV733 (LTA460HJ04). Matrix codes - thanks to ffdf
    Toshiba 55WL768 (LTA550HQ07)
    [​IMG]

    Link to next Samsung matrix pictures post:
    http://www.avforums.com/forums/15106974-post599.html

    Attached Files:

    • Thanks Thanks x 4
    Last edited: Jul 28, 2011
  5. adtomov

    adtomov Member

    Joined:
    Oct 19, 2008
    Messages:
    140
    Trophy Points:
    31
    Ratings:
    +71
    LG Displays LCD panels in pictures

    LGD (S-IPS) - Philips 42PFL7404, 42PFL8404 (LC420WUF-SBN1, code 183), 32PFL8404(LC320WUF-SBN1, code 181), 42PFL5604 (LC420WUG-SBA1 code 202) :
    [​IMG]

    FAQ = LCD òåëåâèçîðû ôèðìû Philips. Òîëüêî FAQ, îáñóæäåíèå â äðóãîé âåòêå [5] - Êîíôåðåíöèÿ iXBT.com

    LGPH H-IPS (Toshiba32AV615DG, Toshiba 32AV635DR, Toshiba 32AV605PG, Philips 26PFL3404, LG 32LH2000 (Thanks to ffdf), LG32LH2010ZB(LC320WXN-SBA3, Thanks to nemets)
    Special thanks to Nielo_TM :thumbsup:
    [​IMG]

    Philips19PFL3405 (H-IPS)
    [​IMG]

    LGD AS-IPS (LG 47LD950)
    [​IMG]

    LGD AS-IPS (Panasonic TX-L42V20E)
    [​IMG]

    LGD AS-IPS (Toshiba 42SL738G)
    [​IMG]

    (reserved for further editing)

    Attached Files:

    • Thanks Thanks x 4
    Last edited: Jul 13, 2011
  6. adtomov

    adtomov Member

    Joined:
    Oct 19, 2008
    Messages:
    140
    Trophy Points:
    31
    Ratings:
    +71
    AUO LCD Displays in pictures
    AUO (A-MVA) - old type ((Panasonic TX-L26C10P)
    [​IMG]
    AUO (A-MVA2) - Philips42PFL5603 (T420HW01 V4, code 131), Philips37PFL5603 (code 166) 50% grey:
    [​IMG]
    AUO (A-MVA2) - 100% grey (white):
    [​IMG]
    AUO (A-MVA3) - Samsung LE32B653 (AA01), LE40B650 (AA03):
    50%grey:
    [​IMG]
    100%grey (white):
    [​IMG]
    AUO (A-MVA3) - Samsung LE40B620 (AA01)
    [​IMG]
    AUO (A-MVA3(2'nd type)) Samsung LE37B553 (AC02, matrix type:T370HW03 V0, AU37H30, 8bit), Philips 37PFL8404,37PFL9604 (code 189):
    [​IMG]

    AUO A-MVA , Sony KDL-26EX302 (Panel-T260XW05V0 - Thanks to ertdh ), Panasonic_TX-L26C20E
    [​IMG]

    AUO (A-MVA3) Samsung LE37C650 (AA03). Same subpixel type: LG 42LE5300(ZA.AEUDLJG), LG37LE4500(ZA.BEUDLJG)
    [​IMG]

    Sony KDL-37EX521 - A-MVA3 (AUO)
    [​IMG]

    Link to next AUO matrix pictures post

    Attached Files:

    • Thanks Thanks x 4
    Last edited: Apr 24, 2012
  7. adtomov

    adtomov Member

    Joined:
    Oct 19, 2008
    Messages:
    140
    Trophy Points:
    31
    Ratings:
    +71
    CMO (CHIMEI Innolux) LCD panels in pictures
    CMO - Samsung LE40A536 (CN01)
    [​IMG]
    CMO - Samsung LE32B650 (CN03)
    50% grey
    [​IMG]
    70%grey
    [​IMG]
    CMO - Samsung UE-40B6000 (BN02)
    [​IMG]
    CMO - Samsung LE46B530 (CN01)
    [​IMG]

    Sony 32CX520 - V315B6-L03
    [​IMG]

    Sony KDL65HX920 - V645H1-PE1
    [​IMG]

    (reserved for further editing)

    Attached Files:

    • Thanks Thanks x 4
    Last edited: Apr 27, 2012
  8. adtomov

    adtomov Member

    Joined:
    Oct 19, 2008
    Messages:
    140
    Trophy Points:
    31
    Ratings:
    +71
    Sharp LCD panels in pictures

    Sharp ASV (variant) Philips 32PFL5624H (LK315D3GA13, code 199)[​IMG]

    Sharp ASV (Sharp LC37D44EBK) [​IMG]

    Sharp ASV (Philips 32PFL5404H, multiple Philips Hi-End models up to Philips 56PFL9954H - 21:9) [​IMG]

    Sharp X-Gen ASV, first variant (Sharp LC-46LE700E) (LK460D3FZL0Z)
    [​IMG]

    Sharp X-Gen ASV (LK460D3LA43) - Philips 46PFL9704H (code 195), Philips 46PFL7605H (code 271)
    [​IMG]

    Sharp X-GEN ASV UV2A RGB- Sony KDL40EX700 (LK400D3LA45)
    [​IMG]

    Sharp X-GEN ASV UV2A "Quattron" - Sharp LC-46LE820ЕV (LK460D3LWA0Y)
    [​IMG]

    Sharp UV2A - Sony KDL-52LX900, KDL-60LX900, KDL-46,52NX800
    [​IMG]

    Sharp UV2A - Phillips 32PFL6606K/02 (SOURCE: Forum de Luxx - Einzelnen Beitrag anzeigen - [Sammelthread] 32" 1080p TV als Monitorersatz? User: Arikus83. Congratulations for the perfect picture! )
    [​IMG]

    (reserved for further editing)

    Attached Files:

    • Thanks Thanks x 4
    Last edited: Sep 26, 2011
  9. adtomov

    adtomov Member

    Joined:
    Oct 19, 2008
    Messages:
    140
    Trophy Points:
    31
    Ratings:
    +71
    IPS-Pro(vectus) LCD panels in pictures - IPS Alpha Technology, LTD

    Panasonic "X", "G", "U", "V", "C" and "S" LCD models 32" and 37", Samsung LE-37B530
    Best viewing angles among all LCD TV's. For now...
    [​IMG]

    Panasonic TX-L37G20E - IPS-Pro(Alpha)
    [​IMG]

    Panasonic TXL-47ET50E (IPS-Pro 47") panel
    [​IMG]

    Reserved for furter editing

    Attached Files:

    • Thanks Thanks x 3
    Last edited: Jul 14, 2012
  10. adtomov

    adtomov Member

    Joined:
    Oct 19, 2008
    Messages:
    140
    Trophy Points:
    31
    Ratings:
    +71
    Chi Lin Technology Co., Ltd. LCD panels in pictures

    Chi Lin Tech. Co., Ltd. (Samsung panel LE-40D6100, LD400CGC-C2,CLL6CC5,10 BITS,40, Thanks to ertdh ):
    [​IMG]

    (reserved for further editing)

    Attached Files:

    • Thanks Thanks x 2
    Last edited: Jul 28, 2011
  11. adtomov

    adtomov Member

    Joined:
    Oct 19, 2008
    Messages:
    140
    Trophy Points:
    31
    Ratings:
    +71
    Unknown manufacturer (2) LCD panels

    (reserved for further editing)
  12. adtomov

    adtomov Member

    Joined:
    Oct 19, 2008
    Messages:
    140
    Trophy Points:
    31
    Ratings:
    +71
    TN type LCD panels - various types. Most frequent use - for low-cost LCD monitors equal or under 24" size. Present in all under 19" and some 22" LCD TV's. Very poor viewing angles.
    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    (reserved for further editing)

    Attached Files:

    • Thanks Thanks x 1
    Last edited: Jul 2, 2011
  13. chicote69

    chicote69 Member

    Joined:
    Apr 10, 2008
    Messages:
    320
    Trophy Points:
    31
    Ratings:
    +61
    Could be possible a UV2A photo???


    Thanks
    Last edited: Nov 29, 2009
  14. xan123

    xan123 Member

    Joined:
    Dec 31, 2005
    Messages:
    3
    Trophy Points:
    1
    Ratings:
    +0
    Very nice info here , but kinda hard to find this topic.
    BTW, pixel shape of LE40B550 SQ02 -> confirmed(like 551)
    What type of panel is it? Is it a SPVA derivative or rather like S/A-MVA?
  15. adtomov

    adtomov Member

    Joined:
    Oct 19, 2008
    Messages:
    140
    Trophy Points:
    31
    Ratings:
    +71
    :) Samsung S-PVA, relatively new type. The Samsung are evolving S-PVA matrices to various types, depending on the model range and hardware requirements. One should expect more matrix's chartists ("topography") in the future.
    :)
    • Thanks Thanks x 1
    Last edited: Dec 8, 2009
  16. nemets

    nemets Member

    Joined:
    Dec 26, 2009
    Messages:
    1
    Trophy Points:
    3
    Ratings:
    +2
    What this?

    [​IMG]
    [​IMG]

    LCD panel LG32LH2010ZB
    • Thanks Thanks x 2
    Last edited: Sep 11, 2010
  17. Nielo TM

    Nielo TM Member

    Joined:
    Oct 30, 2005
    Messages:
    5,061
    Trophy Points:
    136
    Ratings:
    +569
    Thank you very much adtomov and hristoslav2 for the excellent thread and posts.


    Much appreciated:thumbsup:
    • Thanks Thanks x 2
  18. hristoslav2

    hristoslav2 Member

    Joined:
    Jul 6, 2009
    Messages:
    559
    Trophy Points:
    43
    Ratings:
    +191
    TOSHIBA 2010

    Code:
      моdel      res.   backlight(cd/m2)  frec.   contrast dyn/stat   res.time      тuner      wlan/dlna/wi-fi          media            you tube   color
    55WL753G   1920x1080   EdgeLED/450    200Hz    6000000:1/5000:1      5ms       DVB-T/T2/С       y/y/y     USB[JPEG/MP3/XviD/DivX-SD]     y
    55WL743G   1920x1080   EdgeLED/450    200Hz    6000000:1/5000:1      5ms       DVB-T/С/S/S2     y/y/y     USB[JPEG/MP3/XviD/DivX-SD]     y       white
    46WL753G   1920x1080   EdgeLED/450    200Hz    6000000:1/5000:1      5ms       DVB-T2/С         y/y/y     USB[JPEG/MP3/XviD/DivX-SD]     y
    46WL743G   1920x1080   EdgeLED/450    200Hz    6000000:1/5000:1      5ms       DVB-T2/С/S/S2    y/y/y     USB[JPEG/MP3/XviD/DivX-SD]     y       white
    46WL733G   1920x1080   EdgeLED/450    200Hz    6000000:1/5000:1      5ms       DVB-T/С/S/S2     y/y/y     USB[JPEG/MP3/XviD/DivX-SD]     y
    40WL753G   1920x1080   EdgeLED/450    200Hz    6000000:1/5000:1      5ms       DVB-T/С          y/y/y     USB[JPEG/MP3/XviD/DivX-SD]     y
    40WL743G   1920x1080   EdgeLED/450    200Hz    6000000:1/5000:1      5ms       DVB-T/С/S/S2     y/y/y     USB[JPEG/MP3/XviD/DivX-SD]     y       white
    40WL733G   1920x1080   EdgeLED/450    200Hz    6000000:1/5000:1      5ms       DVB-T/С/S/S2     y/y/y     USB[JPEG/MP3/XviD/DivX-SD]     y

    46YL743G   1920x1080   EdgeLED/450    100Hz    6000000:1/5000:1      5ms       DVB-T/С/S/S2     y/y/y     USB[JPEG/MP3/XviD/DivX-SD]     y
    40YL743G   1920x1080   EdgeLED/450    100Hz    6000000:1/5000:1      5ms       DVB-T/С/S/S2     y/y/y     USB[JPEG/MP3/XviD/DivX-SD]     y       white
    32YL743G   1920x1080   EdgeLED/450    100Hz    6000000:1/5000:1      5ms       DVB-T/С/S/S2     y/y/y     USB[JPEG/MP3/XviD/DivX-SD]     y       white

    46VL743G   1920x1080   EdgeLED/450    100Hz    500000:1/5000:1       5ms       DVB-T/С/S2       y/y/y     USB [JPEG/MP3/DivX-SD]         y
    46VL733G   1920x1080   EdgeLED/450    100Hz    500000:1/5000:1       5ms       DVB-T/С          y/y/y     USB [JPEG/MP3/DivX-SD]         y       white
    40VL743G   1920x1080   EdgeLED/450    100Hz    500000:1/5000:1       5ms       DVB-T/С/S2       y/y/y     USB [JPEG/MP3/DivX-SD]         y       white
    40VL733G   1920x1080   EdgeLED/450    100Hz    500000:1/5000:1       5ms       DVB-T/С          y/y/y     USB [JPEG/MP3/DivX-SD]         y
    32VL743G   1920x1080   EdgeLED/450    100Hz    500000:1/5000:1       5ms       DVB-T/С/S2       y/y/y     USB [JPEG/MP3/DivX-SD]         y       white
    32VL733G   1920x1080   EdgeLED/450    100Hz    500000:1/5000:1       5ms       DVB-T/С          y/y/y     USB [JPEG/MP3/DivX-SD]         y

    46ZV743G   1920x1080    CCFL/450      100Hz    80000:1/5000:1        6ms       DVB-T/С/S2       y/y/y     USB[JPEG]                      n       white
    40ZV743G   1920x1080    CCFL/450      100Hz    80000:1/5000:1        5ms       DVB-T/С/S2       y/y/y     USB[JPEG]                      n       white
    37ZV743G   1920x1080    CCFL/450      100Hz    80000:1/5000:1        5ms       DVB-T/С/S2       y/y/y     USB[JPEG]                      n       white
    32ZV743G   1920x1080    CCFL/450      100Hz    80000:1/5000:1        5ms       DVB-T/С/S2       y/y/y     USB[JPEG]                      n       white

    46SL733G   1920x1080   EdgeLED/450    100Hz    4000000:1/5000:1      4ms       DVB-T/С          y/y       USB[JPEG]                      n
    40SL733G   1920x1080   EdgeLED/450    100Hz    4000000:1/5000:1      4ms       DVB-T/С          y/y       USB[JPEG]                      n
    32SL733G   1920x1080   EdgeLED/450    100Hz    4000000:1/5000:1      4ms       DVB-T/С          y/y       USB[JPEG]                      n

    46XV733G   1920x1080    CCFL/500      100Hz    50000:1/5000:1        6ms       DVB-T/С          y/y       USB[JPEG/MP3]                  n
    40XV743G   1920x1080    CCFL/450      100Hz    50000:1/5000:1        6ms       DVB-T/С          y/y       USB[JPEG/MP3]                  n       white
    40XV733G   1920x1080    CCFL/500      100Hz    50000:1/5000:1        6ms       DVB-T/С          y/y       USB[JPEG/MP3]                  n
    40XV703G   1920x1080    CCFL/500      100Hz    50000:1/5000:1        6ms       Analogue         y/y       USB[JPEG/MP3]                  n
    37XV733G   1920x1080    CCFL/500      100Hz    50000:1/5000:1        6ms       DVB-T/С          y/y       USB[JPEG/MP3]                  n
    32XV733G   1920x1080    CCFL/500      100Hz    50000:1/5000:1        6ms       DVB-T/С          y/y       USB[JPEG/MP3]                  n

    40TV743G   1920x1080    CCFL/450       50Hz    80000:1/4500:1        8ms       DVB-T/С/S/S2     y/y       USB[JPEG]                      n       white
    37TV743G   1920x1080    CCFL/450       50Hz    80000:1/4500:1        8ms       DVB-T/С/S/S2     y/y       USB[JPEG]                      n       white
    32TV743G   1920x1080    CCFL/450       50Hz    80000:1/4500:1        8ms       DVB-T/С/S/S2     y/y       USB[JPEG]                      n       white

    40RV753G   1920x1080    CCFL/500      50Hz      50000:1/4500:1       8ms       DVB-T/T2/C       y/y       USB[JPEG]                      n
    40RV743G   1920x1080    CCFL/500      50Hz     500000:1/4500:1       8ms       DVB-T/С/S/S2     y/y       USB[JPEG]                      n       white
    40RV733G   1920x1080    CCFL/500      50Hz     500000:1/4500:1       6ms       DVB-T/С          y/y       USB[JPEG]                      n
    37RV753G   1920x1080    CCFL/500      50Hz      50000:1/4500:1     6.5ms       DVB-T/T2/C       y/y       USB[JPEG]                      n
    37RV743G   1920x1080    CCFL/500      50Hz     500000:1/4500:1       8ms       DVB-T/С/S2       y/y       USB[JPEG]                      n       white
    37RV733G   1920x1080    CCFL/500      50Hz     500000:1/4500:1       6ms       DVB-T/С          y/y       USB[JPEG]                      n
    32RV753G   1920x1080    CCFL/500      50Hz      50000:1/4500:1      6.5ms      DVB-T/С          y/y       USB[JPEG]                      n
    32RV733G   1920x1080    CCFL/500      50Hz     500000:1/4500:1       6ms       DVB-T/С          y/y       USB[JPEG]                      n

    40LV733G   1920x1080    CCFL/500      50Hz      45000:1/4000:1       8ms       DVB-T/С          n/n       USB[JPEG/MP3]                  n
    40LV703G   1920x1080    CCFL/500      50Hz      45000:1/4000:1       8ms       Analogue         n/n       USB[JPEG/MP3]                  n
    32LV733G   1920x1080    CCFL/500      50Hz      45000:1/4000:1       8ms       DVB-T/С          n/n       USB[JPEG/MP3]                  n

    32DV703G   1366x 768    CCFL/450      50Hz      3000:1/30000:1       6ms       Analogue         n/n       USB[JPEG/MP3/DivX]             n
    26DV733G   1366x 768    CCFL/450      50Hz      3000:1/30000:1     8.5ms       DVB-T/C          n/n       USB[JPEG/MP3/DivX]             n
    26DV703G   1366x 768    CCFL/450      50Hz      3000:1/30000:1     8.5ms       Analogue         n/n       USB[JPEG/MP3/DivX]             n
    22DV733G   1366x 768    CCFL/400      50Hz       1000:1/5000:1       5ms       DVB-T/C          n/n       USB[JPEG/MP3/DivX]             n
    22DV703G   1366x 768    CCFL/400      50Hz       1000:1/5000:1       5ms       Analogue         n/n       USB[JPEG/MP3/DivX]             n
    19DV733G   1366x 768    CCFL/300      50Hz       1000:1/5000:1       5ms       DVB-T/C          n/n       USB[JPEG/MP3]                  n
    19DV713G   1366x 768    CCFL/300      50Hz       1000:1/5000:1       5ms       DVB-T            n/n       USB[JPEG/MP3]                  n
    19DV703G   1366x 768    CCFL/300      50Hz       1000:1/5000:1       5ms       Analogue         n/n       USB[JPEG/MP3]                  n
    15DV703G   1366x 768    CCFL/300      50Hz       1000:1/5000:1       5ms       Analogue         n/n       USB[JPEG/MP3]                  n

    32AV734G   1366x 768    CCFL/450      50Hz      12000:1/4000:1       8ms       DVB-T/С          n/n       USB[JPEG/MP3]                  n       white
    32AV733G   1366x 768    CCFL/450      50Hz      12000:1/4000:1       8ms       DVB-T/С          n/n       USB[JPEG/MP3]                  n       black
    32AV704R   1366x 768    CCFL/450      50Hz      18000:1/1200:1       8ms       Analogue         n/n       USB[JPEG/MP3]                  n
    32AV703G   1366x 768    CCFL/450      50Hz      12000:1/4000:1       8ms       Analogue         n/n       USB[JPEG/MP3]                  n
    26AV733G   1366x 768    CCFL/450      50Hz      30000:1/3000:1     8.5ms       DVB-T/С          n/n       USB[JPEG/MP3]                  n
    26AV703G   1366x 768    CCFL/450      50Hz      30000:1/3000:1     8.5ms       Analogue         n/n       USB[JPEG/MP3]                  n
    22AV733G   1366x 768    CCFL/300      50Hz      10000:1/1000:1       8ms       DVB-T/С          n/n       USB[JPEG/MP3]                  n
    22AV703G   1366x 768    CCFL/300      50Hz      10000:1/1000:1       8ms       Analogue         n/n       USB[JPEG/MP3]                  n
    19AV733G   1366x 768    CCFL/300      50Hz      10000:1/1000:1       5ms       DVB-T/С          n/n       USB[JPEG/MP3]                  n
    19AV703G   1366x 768    CCFL/300      50Hz      10000:1/1000:1       5ms       Analogue         n/n       USB[JPEG/MP3]                  n

    How to decipher model? Toshiba 40SL736G example
    40 - screen size in inches
    SL - series and backlight
    * WL - series flagship 3D Led / L-mean led backlight /
    * SL - High Grade /L-mean led backlight/
    * VL - medium /L-mean led backlight/
    * XV - medium /V-mean with CCFL backlight/
    * LV - Budget Series /V-mean with CCFL backlight/
    * RV - initial budget series /V-mean with CCFL backlight/
    * AV - Base Series /V-mean with CCFL backlight/
    7 - year model
    * 7 - 2010
    * 6 - 2009
    * 5 - 2008
    3 - Specifications / scale variable within the class of the chassis /
    * 6 - DVB-T2, DVB-C, DVB-S/S2, HD H.264
    * 5 - DVB-T2 - Freeview HD
    * 4 - DVB-T, DVB-C, DVB-S/S2, HD H.264
    * 3 - DVB-T, DVB-C
    * 1 - DVB-T2, DVB-C
    * 0 - Analogue
    3 - variants of color -of exclusive models available to dealers
    * 8 -
    * 7 -
    * 6 - black pianno glanc
    * 5 -
    * 4 -
    * 3 - black
    * 2 - white
    * 1 -
    G - the model uses regional
    * B - Britain
    * G - Germany
    * F - France
    * R - Russia
    * C - China
    * K -?
    * U - United states
    * N - Canada
    * A - Australia
    * Y -?
    * E -?

    matrices in models

    19AV733.19AV734-M185B1-L03-CMO
    22AV703,22AV733,22AV734-V216B1-L02-CMO
    26AV703,26AV733-V260B3-L04-CMO

    32AV733-LTA320AP12 SAMSUNG
    32AV734-LC320WXN-SCC1 LG
    32LV733-T315HW04 V4 AUO
    32LV703-LTA320HA04-T01 SAMSUNG
    32RV733,32RV743,32RV753-T315HW04 V4 AUO
    32XV733,32XV743-LC320WUD-SCG1 LG
    32VL733,32VL743-LTA320HF02 SAMSUNG
    32SL733,32SL753-LTA320HF02 SAMSUNG
    32YL743-LTA320HF02 SAMSUNG
    32ZV743-LC320WUD-SCG1 LG
    32KV731,32TV743-T315HW04 V4 AUO

    37RV733,37RV743,37RV753,37TV743-T370HW03 VJ AUO
    37XV733,37XV743-LC370WUD-SCG1 LG

    40LV703,40LV733-LTA400HM02 SAMSUNG
    40XV733-LTA400HF11 SAMSUNG
    40RV733,40RV743-LTA400HM02 SAMSUNG
    40VL733-LTA400HF12 SAMSUNG
    40WL753-LTA400HL01 SAMSUNG
    40ZV743-LTA400HF11 SAMSUNG
    40SL753-LTA400HF12 SAMSUNG
    42XV635-LC420WUD-SBG1 LG

    46XV733-LTA460HJ04 SAMSUNG
    46SL733,46SL736,46SL753-LTA460HJ05 SAMSUNG
    46WL753- LTA460HQ01 SAMSUNG
    46VL733,46VL743-LTA460HJ05 SAMSUNG
    46ZV743- LTA460HJ04 SAMSUNG

    55WL753-LTA550HQ01 SAMSUNG



    http://www.toshiba.co.jp/regza/
    http://www.toshibaregza.co.uk/
    http://www.regzalcdtv.com/
    http://www.regza.com/
    http://www.toshiba-om.net/
    http://www.semicon.toshiba.co.jp/openb2b/websearch/start.jsp
    Last edited: Aug 23, 2010
  19. hristoslav2

    hristoslav2 Member

    Joined:
    Jul 6, 2009
    Messages:
    559
    Trophy Points:
    43
    Ratings:
    +191
    PHILIPS 2010

    Code:
    model          3D    resolution din.contrast           frec.  res.time                        backlight           ambilight
    58PFL9955  21:9  3D  2560x1080  5.000.000:1  500cd/m²  400Hz  0.5ms  Perfect Pixel HD Engine   PRO LED            Spectra 3   Net TV (DLNA)  Wifi              Internet Radio Service
    46PFL9705  3D Ready  1920x1080  5.000.000:1  500cd/m²  400Hz  0.5ms  Perfect Pixel HD Engine   Local Dimming LED  Spectra 3   Net TV (DLNA)  Wifi              Internet Radio Service
    40PFL9705  3D Ready  1920x1080  5.000.000:1  500cd/m²  400Hz  0.5ms  Perfect Pixel HD Engine   Local Dimming LED  Spectra 3   Net TV (DLNA)  Wifi              Internet Radio Service
    32PFL9705            1920x1080  5.000.000:1  500cd/m²  200Hz    1ms  Perfect Pixel HD Engine   Local Dimming LED  Spectra 3   Net TV (DLNA)  Wifi              Internet Radio Service

    46PFL8605  3D Ready  1920x1080  500,000:1    450cd/m²  200Hz    1ms  Perfect Pixel HD Engine   Edge LED           Spectra 2   Net TV (DLNA)  Wi-Fi(optional)   Internet Radio Service
    40PFL8605  3D Ready  1920x1080  500,000:1    450cd/m²  200Hz    1ms  Perfect Pixel HD Engine   Edge LED           Spectra 2   Net TV (DLNA)  Wi-Fi(optional)   Internet Radio Service
    37PFL8605            1920x1080  500,000:1    450cd/m²  200Hz    1ms  Perfect Pixel HD Engine   Edge LED           Spectra 2   Net TV (DLNA)  Wi-Fi(optional)   Internet Radio Service
    32PFL8605            1920x1080  500,000:1    450cd/m²  100Hz    2ms  Perfect Pixel HD Engine   Edge LED           Spectra 2   Net TV (DLNA)  Wi-Fi(optional)   Internet Radio Service

    46PFL7605            1920x1080  500,000:1    450cd/m²  100Hz    2ms  Pixel Precise HD          Edge LED           Spectra 2   Net TV (DLNA)  Wi-Fi(optional)
    40PFL7605            1920x1080  500,000:1    450cd/m²  100Hz    2ms  Pixel Precise HD          Edge LED           Spectra 2   Net TV (DLNA)  Wi-Fi(optional)
    37PFL7605            1920x1080  500,000:1    450cd/m²  100Hz    2ms  Pixel Precise HD          Edge LED           Spectra 2   Net TV (DLNA)  Wi-Fi(optional)
    32PFL7605            1920x1080  500,000:1    450cd/m²  100Hz    2ms  Pixel Precise HD          Edge LED           Spectra 2   Net TV (DLNA)  Wi-Fi(optional)

    42PFL6805  Econova   1920x1080  500,000:1    450cd/m²  100Hz    2ms  Pixel Precise HD          Edge LED           Spectra 2                  Wi-Fi
    40PFL6605            1920x1080  500,000:1    450cd/m²  100Hz    2ms  Pixel Precise HD          Edge LED           Spectra 2
    32PFL6605            1920x1080  500,000:1    450cd/m²  100Hz    2ms  Pixel Precise HD          Edge LED           Spectra 2

    52PFL5605            1920x1080  500 000:1    450cd/m²  100Hz    2ms  Pixel Plus HD             Direct LED
    46PFL5605            1920x1080  500 000:1    450cd/m²  100Hz    2ms  Pixel Plus HD             Direct LED
    40PFL5605            1920x1080  500 000:1    450cd/m²  100Hz    2ms  Pixel Plus HD             Direct LED
    32PFL5625            1920x1080  500 000:1    450cd/m²  100Hz    2ms  Pixel Plus HD             Direct LED
    32PFL5605            1920x1080  100 000:1    450cd/m²  100Hz    2ms  Pixel Plus HD             Direct LED

    42PFL5405            1920x1080  100 000:1    500cd/m²  100Hz    2ms  Pixel Plus HD                   CCFL
    37PFL5405            1920x1080  100 000:1    500cd/m²  100Hz    2ms  Pixel Plus HD                   CCFL
    32PFL5405            1920x1080  100 000:1    450cd/m²  100Hz    2ms  Pixel Plus HD                   CCFL
    22PFL5415             1366x768   50000:1     450cd/m²   50Hz    6ms                            Direct LED

    47PFL3605            1920x1080   50 000:1    500cd/m²   50Hz    5ms  Digital Crystal Clear           CCFL
    42PFL3605            1920x1080   50 000:1    400cd/m²   50Hz    5ms  Digital Crystal Clear           CCFL
    32PFL3605            1920x1080   50 000:1    400cd/m²   50Hz    5ms  Digital Crystal Clear           CCFL
    26PFL3605            1920x1080   50 000:1    400cd/m²   50Hz    5ms  Digital Crystal Clear           CCFL

    26PFL3405             1366x768  150 000:1    400cd/m²   50Hz    8ms  Digital Crystal Clear     Direct LED
    22PFL3405             1366x768  150 000:1    300cd/m²   50Hz    6ms  Digital Crystal Clear     Direct LED
    19PFL3405             1366x768  150 000:1    300cd/m²   50Hz    6ms  Digital Crystal Clear     Direct LED

    All models 37" , 42 "and 47" with AS-IPS matrixes and backlit by LG Display
    All models 32 ", 40", 46 "and 52" with matrix UV2A RGB and backlight by Sharp


    In 34X5 and 56X5 series is the backlight from Sharp
    YouTube - ‪Sharp LED Uncovered‬‎

    In 3605 and 5405 series- CCFL backlight from LG
    In the series 7XX5 and 8XX5 Edge Led backlight from Sharp /like in model Sharp LE810/


    32PFL3605H: LGD AS-IPS (cоde ?); LGD
    32PFL5405H: LGD AS-IPS (cоde 278); LGD WUY SCAL 32"
    32PFL5625H: Sharp UV2A RGB (cоde 233); LK D3GA63 Dv1 32"
    32PFL7605H: Sharp UV2A RGB
    32PFL8605H: Sharp UV2A RGB
    32PFL9705H: Sharp UV2A RGB (cоde 260); LK D3GA33 Dv.1 32

    37PFL5405H: LGD AS-IPS (cоde 277);
    37PFL7605H: LGD AS-IPS (cоde 274);
    37PFL8605H: LGD AS-IPS (cоde ?);

    40PFL5605H: Sharp UV2A RGB (cоde 234); D3GA43 Dv1 40"
    40PFL6605H: Sharp UV2A RGB (cоde 287);
    40PFL8605H: Sharp UV2A RGB (cоde ?);

    42PFL3605H: LGD AS-IPS (cоde ?);
    42PFL5405H: LGD AS-IPS (cоde 276);
    42PFL7695H: LGD AS-IPS (cоde 272);

    46PFL7605H: Sharp UV2A RGB (cоde 271).

    remote controlers
    http://forum.ixbt.com/post.cgi?id=attach:62:14399:110:5


    How to decipher the model number? For example, 46PFL9705H/12
    46 - TV diagonal in inches
    PFL - Philips Flat LCD
    * PFL - Philips Flat LCD
    * PES - Philips Essence Serie
    * HFL - Hotel Flat LCD
    * PFP - Philips Flat Plasma
    9 - series, class television the greater the figure, higher grade TV
    * 9 - flagship series
    * 8 - Premier Series
    * 7 - middle class
    * 6 - middle class
    * 5 - Budget Series
    * 4 - not available in Europe / North America only / at least for now
    * 3 - Base series
    7 - downseries / sometimes determined extras /
    0 - set design and color
    * 0 - body color: black
    * 1 - Hull color: white
    * 2 - color of the body:
    * 7 - hull color: Brilliant dark-gray
    * 6 - hull color: dark metallik
    * 8 - Hull color: Dark Titanium
    * 9 - Hull color: silver, pearl
    5 - year development of the model. Exceptions are the top models with Aurea, 9900 and 9980
    * 1 - 2006
    * 2 - 2007
    * 3 - 2008
    * 4 - 2009
    * 5 - 2010
    H - indicates tuners built into the model.
    * D - DVB-T (MPEG2) + analog
    * H - DVB-T (MPEG2/MPEG4) and DVB-C (MPEG-4.HD AVC)
    * K - DVB-T (MPEG2/MPEG4), DVB-C (MPEG-4.HD AVC) and DVB-S2 (MPEG-4)
    * S - DVB-T (MPEG2)
    * - - Lack of a point shows that the model has only an analog tuner
    / 12-digits after the slash shows the regional destination of the product and have no impact on functionality.
    * 02 - Switzerland, Germany, Austria
    * 05 - Great Britain
    * 10 - Germany
    * 12 - All Europa / Continent /
    * 27 - USA, Canada, Puerto Rico, USVirgin Islands,
    * F7/F7e/F7b - USA, Canada, Puerto Rico, USVirgin Islands, Mexico
    * 27/55/85 - Central America
    * 27/55/77/78 - Argentina, Chile, Colombia, Ecuador, Panama, Paraguay, Peru, Uruguay, Venezuela
    * 30/93/98 - Southeast Asia
    * 37 - U.S.A., Canada
    * 56/94 - Pakistan, India
    * 60 - Russia
    * 77 - Argentina, Paraguay, Uruguay
    * 78 - Brasil
    * 79 - China, Middle East, Thailand
    * 1993 - India, Thailand, Vietnam, Korea, China
    * 98 - India, Pakistan, Malaysia, Tajwan, Philippines, Middle East, Africa
    * 97 - Australia, New Zeeland

    example-52PFL9632D/10- 52 inch, lcd, 9 -series, 6 - downseries , 3 - design , 2 -year2006 , DVB-T tuner, 10 produced for Western Europe.


    How to decipher the serial number? - Example / VN4B1004026520 /
    VN - code factories where manufactured /VN1B1004026520/
    * VN - Hungary
    * DG - France
    * RJ - Poland
    * SN - Poland?
    * TB - Russia Kaliningrad
    * AG - Belgium
    * YA - Mexico
    * SW -??
    1 - B.O.M. (Bill of materials)
    B - - Service version change code
    10 - year of manufacture /VN1B1004026520/
    * 10-2010
    * 09-2009
    04 - week in which it is produced /VN1B1004026520/
    * 04 - fourth week of the beginning of the year
    02 -?? / VN1B1004026520 /
    65 -??
    20 -??

    Code:
    Моdel ТV    Cоde    Тype        Маrk матrices
    32PFL3605H    117    S-IPS        LGD LC320WUN
    32PFL5405H    278    S-IPS        LGD WUY SCAL32"
    32PFL5605H    284    XXX        XXX
    32PFL5625H    233    UV2A RGB    Sharp LK315D3GA63Dv1 32"
    32PFL7605H    265    S-IPS        LC320EUH-SCA 6
    32PFL76X5H    286    S-IPS        LGD EUH SCA2 Dv2 32"
    32PFL7605H    275    S-IPS        LGD EUH SCA Dv.1 32"
    32PFL7685H    286    S-IPS        LGD EUH SCA2 Dv2 32"
    32PFL8605H    275    S-IPS        LGD EUH SCA Dv.1 32"
    32PFL9705H    260    UV2A RGB     Sharp LK315D3GA33

    37PFL5405H    277    S-IPS        LGD LC370WUD
    37PFL7605H    274    S-IPS        LGD LC370WUD
    37PFL8605H    259    S-IPS        LGD

    40PFL5605H    234    UV2A RGB     Sharp LK400D3GA43Dv1 40"
    40PFL5605H    285    UV2A RGB     Sharp LK400D3GA43TL 40"
    40PFL6605H    287    UV2A RGB     Sharp
    40PFL7605H    273    UV2A RGB     Sharp LK400D3GA43Dv1 40"
    40PFL7605H    287    UV2A RGB     Sharp
    40PFL8605H    263    UV2A RGB     Sharp LK400D3LB23

    42PFL3605H    115    S-IPS        LGD LC420WUN
    42PFL5405H    276    S-IPS        LGD LC420WUD
    42PFL76X5H    272    S-IPS        LGD LC420WUD
    42PFL6805H    279    S-IPS        LGD 42 Side lit LED 100Hz

    46PFL5605H    236    UV2A RGB    Sharp LK460D3GA23
    46PFL5605H    237    UV2A RGB    Sharp ???
    46PFL7605H    271    UV2A RGB    Sharp
    46PFL8605H    262    UV2A RGB     Sharp
    46PFL9705H    257    UV2A RGB     Sharp LK460D3LA73

    47PFL3605H    11?    S-IPS        LGD LC470WUN

    52PFL5605H    264    XXX        XXX
    52PFL8605H    261    UV2A RGB     Sharp LK520D32B43

    Home - Royal Philips
    Philips - Support Forum
    Philips Parallel Lines: A Cinema 21:9 production
    Philips – LCD TV & LED TV
    Philips - IFA 2009 - Press
    https://www.mediacee-philips.com/
    http://twitter.com/Philips_BME
    Philips Cinema | Facebook
    • Thanks Thanks x 1
    Last edited: Jul 6, 2011
  20. hristoslav2

    hristoslav2 Member

    Joined:
    Jul 6, 2009
    Messages:
    559
    Trophy Points:
    43
    Ratings:
    +191
    SAMSUNG 2010

    Code:
    моdel    din.contrast      processor       Motion Plus  3D   Skype  PVR Ready     DVB     dts2.0    USB2.0     color
    C9090    8,000,000:1   3DHyperReal Engine   200 Hz    yes    yes     yes      DVB-T/C       да   Movie,JPEG   Brushed titanium
    C8790    8,000,000:1   3DHyperReal Engine   200 Hz    yes    yes     yes      DVB-T/C/S2    да   Movie,JPEG   Brushed titanium
    C8780    8,000,000:1   3DHyperReal Engine   200 Hz    yes    yes     yes      DVB-T/C       да   Movie,JPEG   Brushed titaniuml
    C7700    6,000,000:1   3DHyperReal Engine   200 Hz    yes     no     yes      DVB-T/C/S2    да   Movie,JPEG   black Desert
    C7000    6,000,000:1   3DHyperReal Engine   200 Hz    yes     no     yes      DVB-T/C       да   Movie,JPEG   brown
    C6820    7,000,000:1    HyperReal Engine    100 Hz     no     no      no      DVB-T/C/S2    да     Movie      Brown
    C6800    7,000,000:1    HyperReal Engine    100 Hz     no     no      no      DVB-T/C/S2    да     Movie      Black
    C6730    5,000,000:1    HyperReal Engine    100 Hz     no     no      no      DVB-T/C/S2    да     Movie      Gray
    C6710    5,000,000:1    HyperReal Engine    100 Hz     no     no      no      DVB-T/C/S2    да     Movie      White
    C6700    5,000,000:1    HyperReal Engine    100 Hz     no     no      no      DVB-T/C/S2    да     Movie      Black
    C6560    5,000,000:1    HyperReal Engine    100 Hz     no     no      no      DVB-T/C       да     Movie      Stone black
    C6300    4,000,000:1    HyperReal Engine    100 Hz     no     no      no      DVB-T/C       да     Movie      Graphite
    C6000    4,000,000:1    HyperReal Engine    100 Hz     no     no      no      DVB-T/C       да     Movie      Gloss black
    C5100    3,000,000:1    HyperReal Engine    50 Hz      no     no      no      DVB-T/C       да     Movie      Gloss black
    C5000    3,000,000:1    HyperReal Engine    50 Hz      no     no      no      DVB-T/C       да     Movie      Gloss black
    C4010    2,000,000:1        DNIe +          50 Hz      no     no      no      DVB-T/C       да     Movie      White
    C4000    2,000,000:1        DNIe +          50 Hz      no     no      no      DVB-T/C       да     Movie      Rose Black
    C750     300,000:1      3DHyperReal Engine  200 Hz    yes     no     yes      DVB-T/C       да     Movie      Platinum black
    C679     120,000:1      HyperReal Engine    100 Hz     no     no      no      DVB-T/C/S2    да     Movie      Gloss black
    C678     120,000:1      HyperReal Engine    100 Hz     no     no      no      DVB-T/C/S2    да     Movie      Gloss black
    C654     120,000:1      HyperReal Engine    100 Hz     no     no      no      DVB-T/C       да     Movie      Gloss black
    C650     120,000:1      HyperReal Engine    100 Hz     no     no      no      DVB-T/C       да     Movie      Rose Black
    C630     120,000:1      HyperReal Engine    100 Hz     no     no      no      DVB-T/C       да     Movie      Charcoal grey
    C580    High Contrast   HyperReal Engine    50 Hz      no     no      no      DVB-T/C/S2    да     Movie      Rose Black
    C579    High Contrast   HyperReal Engine    50 Hz      no     no      no      DVB-T/C/S2    да     Movie      Rose Black
    C570    High Contrast   HyperReal Engine    50 Hz      no     no      no      DVB-T/C/S2    да     Movie      Rose Black
    C550    High Contrast   HyperReal Engine    50 Hz      no     no      no      DVB-T/C       да     Movie      Rose Black
    C530    High Contrast   HyperReal Engine    50 Hz      no     no      no      DVB-T/C       да     Movie      Gloss Black
    C451    High Contrast           не          50 Hz      no     no      no      DVB-T/C       да     Movie      Glossy white
    C450    High Contrast           не          50 Hz      no     no      no      DVB-T/C       да     Movie      Gloss black


    LE19C350,LE19C450,LE19C430 - BN07-00766A-INNOLUX,MT185GW01 V2,6bit Hi-FRC,358.5,TN
    LE19C350,LE19C450,LE19C430 - CPT,BN07-00623A,CPT,CLAA185WA03,CH8WA03,6BIT HI-FR,TN
    LE19C350,LE19C450E1 - BN07-00703A.SAMSUNG,LTM185AT01,SS8YTSV,6BIT HI-FRC,TN
    LE22C350 - BN07-00744A,CHILIN,T216HA01-DB,6BIT HI-FRC,16.7M,TN
    LE22C450,LE22C430 - BN07-00731A,CPT,CLAA216WA01,CH1WA01,6bit Hi-FR, TN
    LE22C450,LE22C430 - BN07-00757A,SAMSUNG,LTF216AT01,SS6YTS11,6BIT HI-FR,TN
    LE26C350 - BN07-00866A,CHILIN,T260HA01-DB,CLC3AC1,8bits,26,1
    LE26C450 - BN07-00824A,AUO,T260XW04 V2,AU26X42,8bit,26,16
    LE26C450 - BN07-00806A,SAMSUNG,LTF260AP04,SS4YPW,8bit,26,16.7
    LE32C350 - CHILIN,BN07-00867A,AUO,T315HA01-DB,CLC4AC1,8bits,32,1
    LE32C450 - BN07-00825A,AUO,T315XW03 V2,AU31X32,8bit,31.5,
    LE32C450 - BN07-00807A,SAMSUNG,LTF320AP08,SSCYPZ,8bit,32,16.7
    LE32C530,550,570,580 - BN07-00808A,SAMSUNG,LTF320HM01, SSCZMS, 8bit, 31.5inch, 16.7M, 16:9, 0.36375(H) X 0.12125(W), 0 to +50, 12V, SPVA, CCFL, 60Hz, AG
    LE32C530,550,570,580 - BN07-00826A,AUO,T315HW04 V2,AU31H42,8bit,31.5,
    LE32C630,650,670 - BN07-00809A ,SAMSUNG,LTF320HF01 ,32inch, 8bit_16.7M, 16:9, 0.36375(H)*0.36375(V),0 to 50, 12V, SPVA, 72%, 32 inch FHD, 4U-Lamp
    LE32C630,650,670 - BN07-00827,AUO,AT315HW04V3,AU31H43,31.5inch,8bit+2FRC_1.07billion, 16:9, 0.36375(H)*0.36375(V), 0 to 50, 12V, SPVA, 72%, FHD
    LE37C530,550,570,580 - BN07-00828A,AUO,T370HW03 VG, AU37H3G, 8bit, 37.0inch, 16.7M, 16:9, 0 to +50, 12V, AMVA3, CCFL, 60Hz
    LE37C630,650,670 - BN07-00829A,AUO,T370HW03 VH,AU37H3H,8bit
    LE40C530,550,570,580 - BN07-00800A,SAMSUNG,SAMSUNG,LTF400HM01,SSDZMS,8bit,40,1.67
    LE40C530,550,570,580 - BN07-00830A,AUO,T400HW03 V2, AU40H32, 8bit, 40.0inch, 16.7M, 16:9, 0 to +50, 12V, AMVA3, CCFL, 60Hz
    LE40C630 - BN07-00802A,SAMSUNG,SAMSUNG,LTF400HF16,SSDZF7,8bit,40,1.07,LTF400HF16, 40inch 1.07Billion(10bit Dithering), 16:9, 0 to 50, 12V, 72%, 40 inch FHD
    LE40C630 - BN07-00831B,AUO,T400HW03 V4,AU40H34,8bit,40,16
    LE40C650,670 - BN07-00801A,SAMSUNG,LTF400HF15,SSDZF6,8bit,40,1.07,LTF400HF15, 8bit, 16.7M 0.46125(H)*0.46125(W), 0 to 50, 12V, 72%, 40 inch FHD
    LE40C650,670 - BN07-00831A,AUO,T400HW03 V3,AU40H33,8bit,40,16
    LE40C650,670 - BN07 00821A,CMO,V400H1-LH9,CM40H19,10bits,40
    LE40C750 - BN07-00843A,SAMSUNG,LTF400HQ01,SSDZQS,8bit,40,1.07
    LE46C530,550,570,580 - BN07-00832A,AUO,T460HW03 VJ,AU46H3J,8bit,46,16
    LE46C530,550,570 - BN07-00815A,SAMSUNG,LTF460HM01,SSEZMS,8bit,46,16.7
    LE46C630 - BN07-00804A,SAMSUNG,LTF460HJ02,SSEZJX,8bit,46,16.7
    LE46C630 - BN07-00833B,AUO,T460HW03 VL,AU46H3L,8bit,46,16
    LE46C650,670 - BN07-00833A,AUO,T460HW03 VK,AU46H3K, 8bit, 16.7M, 16:9, 0.53025(H)*0.53025(V), 0 to 50, 12V, 72%,
    LE46C650,670 - BN07-00816A,SAMSUNG,LTF460HJ01,SSEZJS,8bit,46,16.7
    LE46C750 - BN07-00805A,LTF460HQ01,SSEZQS,8bit,46,16.7
    LE55C650 - BN07-00834A,AUO,T546HW01 V0,AU54H10,8bit,54.6,
    LE55C650 - BN07-00810A,SAMSUNG,LTF550HJ01,SSTZJS,8bit,55,1.07G(Dither 10bit), 16:9, 0 to 50, 12V, 72%,
    LE60C650 - BN07-00897A ,(FB01,FB02)SHARP,LK600D3LA3K,SP00D00,10bit,60 i

    LED
    UE19C4000 - BN07-00837A,INNOLUX,MT185GW01 V3,6bit Hi-FRC,18.5,TN
    UE22C4000 - BN07-00865A,CMO,T216HAE1-DB,CLL2AC1,6bit Hi-FR ,TN
    UE26C4000 - BN07-00847A.CMO,T260HAE1-DB,CLL3AC1,8bits,26,1
    UE32C4000 - BN07-00848A,CHILIN,T320HAE1-DB,CLL4AC1,8bits,32,1
    UE32C5000,C5100 - BN07-00849A,CHILIN,T320FAE1DB,CLL4BC1,8bits,32,16.7M,16:9,0 to +50,12V,SMVA3, 72%,OEM PANEL,60Hz
    UE32C6*** - BN07-00858A,SAMSUNG,LTF320HF02,SSCZFX,8bit,31.5,16
    UE37C5000,C5100 - AUO,BN07-00880A,AUO,T370FAE1DA,CLL5BA1,8bits,37,1073.7M,16:9,0 to +50,12V,AMVA3, 82%,OEM PANEL. 37 inch, FHD, 60Hz
    UE37C6*** - BN07-00851A,AUO,T370FBE1-DB,CLL5CC1,10bits,37,
    UE40C5000,C5100 - BN07-00856A,CMO,T400FAE1DB,CLL6BC1,8bits,40,16.7M,16:9,0 to +50,12V,SMVA3, 72%,OEM PANEL,60Hz
    UE40C5000,C5100 - (FB02) SHARP,BN95-00393A,T400FAE2-HE,TLL6BP2,10b
    UE40C6*** - BN07-00852A,AUO,T400FBE2-DB,CLL6CC1,10bits,40,
    UE40C6*** - BN07-00859A,SAMSUNG,LTF400HJ03,SSDZJT,8bit,40,1.07B,16:9,0.46125(H)*0.15375(w,0 to +50,12V,SPVA 82%,LED,120Hz,SC
    UE40C6*** - BN07-00913A,SAMSUNG,LTF400HJ05,SSDZJU,8bit,40inch,
    UE40C7000 - BN07-00862A,SAMSUNG,LTF400HQ02,SSDZQX,8bit,40,1.07
    UE40C8000 - BN07-00872A,SAMSUNG,LTF400HQ03,SSDZQT,8bit,40,1.07
    UE46C5000,C5100 - (GA01)AUO,BN95-00384A,T460FAE1FA,SLL7BA1,8bits,46inch,16:9,0 to +50,12V,AMVA3, 72%,1920*1080,VD HQ PANEL, FHD,60Hz, AUO CELL
    UE46C5000,C5100 - BN07-00853A,CHILIN,T460FAE1-DB,CLL7BC1,8bits,46,1
    UE46C6*** - BN95-00385A,GA01,AUO,T460FBE1-FA,SLL7CA1,10b
    UE46C6*** - BN07-00854A,CMO,T460FBE2DB,CLL7CC1,10bits,46,1073.7M,16:9,0 to +50,12V,SMVA3, 72%,OEM PANEL,120Hz
    UE46C6*** - BN07-00860A,SAMSUNG,LTF460HJ03,SSEZJT,8bit,46,16.7
    UE46C7000 - BN07-00863A,SAMSUNG,LTF460HQ02,SSEZQX,8BIT,46,16.7
    UE46C8700 - BN07-00874A,SAMSUNG,LTF460HQ03,SSEZQT,8bit,46,16.7
    UE46C9000 - BN95-00398B,ASSY PRODUCT LCD;T460FCE1-F5,SLL8DS1,10b,ASSY OPEN CELL;LTQ460HQ01,8bit,46inch,16
    UE55C6*** - ,GA01,AUO.BN95-00386A,T550FBE1-FA,SLL8CA1,10b
    UE55C7000 - BN07-00864A,;SAMSUNG,LTF550HQ02,SSTZQX,8bit,55,16.7
    UE55C8700 - BN07-00873A,SAMSUNG,LTF550HQ03,SSTZQT,8bit,55,16.7
    UE55C9000 - ASSY OPEN CELL;SAMSUNG,LTQ550HQ01,C9000,8bit,55i,ASSY PRODUCT LCD;T550FCE1-FS,SLL8DS1,10b


    UN60C6300 - SHARP,FB01,T600FBE1-FE,SLL9CP1,8bi


    How to decipher the model?
    Model: LE40C652L2WXXXH
    L - means LCD
    * U - Led Backlight
    E - continental destination
    * E - Europa
    * A - Asia & Africa, Australia
    * N - North America, Korea, South America
    * S - Iran
    * F -
    40 - size in inches
    C - Year of Release Model
    * C - 2010
    * B - 2009
    * A - 2008
    6 - Series
    * 3 - base series
    * 4 - budget Series
    * 5 - budget Series
    * 6 - average series
    * 7 - top series
    * 8 - Premier Series
    * 9 - flagship series
    5 - downseries-determined features such care under 5 have a low chassis but with a series of withdrawals Corps
    * 2 -
    * 3 -
    * 4 -
    * 5 -
    * 6 -
    * 7 -
    * 8 -
    2 - set design and color of the hull, each set is different
    * 0 - Platinum Black
    * 1 - Rose Black
    * 2 - Platinum Black
    * 3 - Rose Black
    * 4 - Black
    * 5 -
    * 6 -
    * 7 -
    * 8 - Black
    * 9 - Platinum Black
    L - the first letter of the project / chassis /
    * L - / LE32C652L2WXZG /
    * M - / LE32C678M1SXZG /
    * A - / LE40B550A5WXZG /
    2 - variation of design (color, body size, etc.) and channels of distribution. Often directly linked to downseries.
    * 1 -
    * 2 -
    * 3 -
    * 5 -
    * 6 -
    * 7 -
    WX - responsible for the tuner / by region
    * WX - DVB-T / C (MPEG4/AVC) England
    * WP - DVB-T / C (MPEG4/AVC)
    * WW - DVB-T / C (MPEG4)
    * SW - DVB-T / C
    * RW - DVB-T / C (MPEG4/HD)
    * UW - DVB-T / C
    * QF -
    * PW - DVB-T / C (MPEG4/HD)
    * QW - DVB-T / C (MPEG4/HD)
    * VW - DVB-T / C (MPEG4)
    * XP - DVB-T / C (MPEG4)
    * XS - DVB-T/C/S
    * US - DVB-T/C/S2 (MPEG4/HD)
    * WS - DVB-T/C/S2 (MPEG4/HD)
    * WF - for Korea
    X - chassi ? a sign of a finished product (S-SKD and C-CKD)
    XH -area code (now two-letter)
    * XH - Eastern Europe
    * BT - Baltic
    * RU - Russiya
    * XC - Western Europe
    * XU - England
    * UA - Ukraine
    * CS - Kazakhstan
    * XE - Northern Europe
    * XN - Benelux
    * ZF - France
    * ZG - Germany, Austria and Switzerland / LE32C652L2WXZG /
    * ZN - Arab Countries
    * ZA - USA
    * XY - Australia
    * XT - India, Thailand

    For example:
    C520 with chassis from fourth series, but with the body of the fifth series
    C530 with chassis from fourth series, but with the body of the fifth series
    C540 with chassis from fourth series, but with the body of the fifth series
    C550 with chassis from fifth series and the body of the fifth series
    C560 with chassis from fifth series, but with the body of the sixth series
    C620 with chassis from fifth series, but with the body of the sixth series
    C630 with chassis from fifth series, but with the body of the sixth series
    C640 with chassis from fifth series, but with the body of the sixth series
    C650 with chassis from sixth series and the body of the sixth series
    C660 with chassis from sixth series, but with the body of 7-Series
    C670 with chassis from sixth series, but with the body of 7-Series

    http://support-us.samsung.com/spstv/live.jsp
    http://www.3dsamsung.tv/
    http://origin.samsung.com/uk/tulip/
    http://origin.samsung.com/uk/f8/
    http://www.samsung.com/uk/television/hdready.html
    http://www.samsungusanews.com/
    http://www.samsung.com/ru/news/main.do
    • Thanks Thanks x 4
    Last edited: Aug 9, 2010
  21. Boostrail

    Boostrail Active Member

    Joined:
    Nov 27, 2007
    Messages:
    5,050
    Trophy Points:
    103
    Ratings:
    +384
    Fantastic information - should be a sticky! Hope it continues to be kept up to date as appears to be happening already.
  22. nenito2k

    nenito2k Member

    Joined:
    Aug 13, 2008
    Messages:
    996
    Trophy Points:
    31
    Ratings:
    +56
    yep very good info there!! i vote sticky too; should be like a bible!!!
  23. hristoslav2

    hristoslav2 Member

    Joined:
    Jul 6, 2009
    Messages:
    559
    Trophy Points:
    43
    Ratings:
    +191
    LG Electronics

    http://www.lge.com/common/index.jsp
    Company LG was established in 1958 as a GOLD STAR

    AS-IPS used in High-End LG TVs
    S-IPS used in Mid-End LG TVs
    H-IPS used in Low-End LG TVs
    e-IPS used in Computer Monitors

    LG Blog http://www.lgblog.co.uk/

    Educational site LG http://lgknowledgebase.com/kb/

    EL -Oled/Amoled LG 15EL9500
    LX - Full Led 3D /9800-6800/
    LE - Full Led 8800 / Led+ 7800-5750 / Led 5308-3308 /19-22-26-32-37-42-47-55/
    LD - CCFL 19-22-26-32-37-42-46-47-52-55-60 /320-920/

    Swedish, Norwegian and Finnish models / LD, LE, LX / ending with - N

    Code:
    моdel     resolution      contrast             panel   backlight               player               3D            тype матrix
    19LD320   1366 x  720p   30.000:1     5 ms     8Bit    CCFL      50Hz                                                  TN
    22LD320   1366 x  720p   30.000:1     5 ms     8Bit    CCFL      50Hz                                                  H-IPS
    26LD320   1366 x  720p   30.000:1     5 ms     8Bit    CCFL      50Hz                                                  H-IPS
    19LD350   1920 x 1080p   70.000:1     5 ms     8Bit    CCFL      50Hz                                                  TN
    22LD350   1920 x 1080p   70.000:1     5 ms     8Bit    CCFL      50Hz                                                 H-IPS
    26LD350   1920 x 1080p   70,000:1     5 ms     8Bit    CCFL      50Hz                                                 H-IPS
    32LD350   1920 x 1080p   60,000:1     4 ms     8Bit    CCFL      50Hz          USB                                    MVA
    32LD351   1920 x 1080p   60,000:1     4 ms     8Bit    CCFL      50Hz          USB                                    S-IPS
    32LD420   1920 x 1080p   60,000:1     4 ms     8Bit    CCFL      50Hz          USB                                    S-IPS / MVA
    47LD420   1920 x 1080p   60,000:1     4 ms     8Bit    CCFL      50Hz          USB                                    S-IPS
    32LD450   1920 x 1080p   60,000:1     4 ms     8Bit    CCFL      50Hz          USB (JPEG/MP3)                          S-IPS / MVA
    37LD450   1920 x 1080p   60,000:1     4 ms     8Bit    CCFL      50Hz          USB (JPEG/MP3)                          S-IPS / MVA
    42LD450   1920 x 1080p   60,000:1     4 ms     8Bit    CCFL      50Hz          USB (JPEG/MP3)                          S-IPS
    32LD550   1920 x 1080p   70,000:1     4 ms    10Bit    CCFL     100Hz          USB (JPEG/MP3)                          S-IPS / MVA
    42LD550   1920 x 1080p   70,000:1     4 ms    10Bit    CCFL     100Hz          USB (JPEG/MP3)                          S-IPS
    46LD550   1920 x 1080p   70,000:1     4 ms    10Bit    CCFL     100Hz          USB (JPEG/MP3)                          S-IPS
    52LD550   1920 x 1080p   70,000:1     4 ms    10Bit    CCFL     100Hz          USB (JPEG/MP3)                          S-IPS
    60LD550   1920 x 1080p   70,000:1     4 ms    10Bit    CCFL     100Hz          USB (JPEG/MP3)                          S-IPS
    32LD570   1920 x 1080p   70,000:1     4 ms    10Bit    CCFL     100Hz          USB (JPEG/MP3)                                   DVB-T/C/S/S2
    42LD570   1920 x 1080p   70,000:1     4 ms    10Bit    CCFL     100Hz          USB (JPEG/MP3)                                    DVB-T/C/S/S2
    32LD650   1920 x 1080p   70,000:1   2,2 ms    10Bit    CCFL     100Hz   DLNA   USB (JPEG/MP3/HD DivxHD)
    37LD650   1920 x 1080p   70,000:1   2,2 ms    10Bit    CCFL     100Hz   DLNA   USB (JPEG/MP3/HD DivxHD)
    42LD650   1920 x 1080p   70,000:1   2,2 ms    10Bit    CCFL     100Hz   DLNA   USB (JPEG/MP3/HD DivxHD)
    47LD650   1920 x 1080p   70,000:1   2,2 ms    10Bit    CCFL     100Hz   DLNA   USB (JPEG/MP3/HD DivxHD)
    55LD650   1920 x 1080p   70,000:1   2,2 ms    10Bit    CCFL     100Hz   DLNA   USB (JPEG/MP3/HD DivxHD)
    32LD750   1920 x 1080p   80,000:1   2,2 ms    10Bit    CCFL     200Hz   DLNA   USB (JPEG/MP3/HD DivxHD)
    32LD751   1920 x 1080p   80,000:1   2,2 ms    10Bit    CCFL     200Hz   DLNA   USB (JPEG/MP3/HD DivxHD)               DVB-T
    42LD750   1920 x 1080p   80,000:1   2,2 ms    10Bit    CCFL     200Hz   DLNA   USB (JPEG/MP3/HD DivxHD)
    42LD751   1920 x 1080p   80,000:1   2,2 ms    10Bit    CCFL     200Hz   DLNA   USB (JPEG/MP3/HD DivxHD)               DVB-T
    47LD750   1920 x 1080p   80,000:1   2,2 ms    10Bit    CCFL     200Hz   DLNA   USB (JPEG/MP3/HD DivxHD)
    47LD751   1920 x 1080p   80,000:1   2,2 ms    10Bit    CCFL     200Hz   DLNA   USB (JPEG/MP3/HD DivxHD)               DVB-T
    32LD920   1920 x 1080p   150000:1   2,2 ms    10Bit    CCFL     200Hz   DLNA   USB (JPEG/MP3/HD DivxHD)   3D passive
    37LD920   1920 x 1080p   150000:1   2,2 ms    10Bit    CCFL     200Hz   DLNA   USB (JPEG/MP3/HD DivxHD)   3D passive
    42LD920   1920 x 1080p   150000:1   2,2 ms    10Bit    CCFL     200Hz   DLNA   USB (JPEG/MP3/HD DivxHD)   3D passive
    47LD920   1920 x 1080p   150000:1   2,2 ms    10Bit    CCFL     200Hz   DLNA   USB (JPEG/MP3/HD DivxHD)   3D passive
    47LD950   1920 x 1080p   150000:1   2,2 ms    10Bit    CCFL     200Hz   DLNA   USB (JPEG/MP3/HD DivxHD)   3D passive

    LG 22LD320 with Saturn6 chassis of last year's models LH, LF-firmware may use intended for them
    LD420 - with last year's corps LH Series
    LD35 *, LD4 **, LD5 ** - Mstar processor and chassis Saturn 7
    LD6 **, LD7 **, LE55 ** and up are based on the processor Broadcom BCM3556

    Code:
    моdel        backlight   resolution           din.contrast                                    player        color of corps
    19LE3300      Edge LED    1366x768      3 ms   1000000:1
    22LE3300      Edge LED    1366x768      3 ms   1000000:1
    26LE3300      Edge LED    1366x768      3 ms   1000000:1
    32LE5300      Edge LED    1920x1080   2.4 ms   3000000:1   100Hz                             • USB           black and purple
    32LE5310      Edge LED    1920x1080   2.4 ms   3000000:1   100Hz                             • USB-MP3/JPEG
    32LE5400      Edge LED    1920x1080   2.4 ms   3000000:1   100Hz                             • USB-MP3/JPEG  black and
    22LE5510      Edge LED    1920x1080     3 ms   4000000:1                                     • USB-MP3/JPEG
    26LE5510      Edge LED    1920x1080     3 ms   4000000:1                                     • USB-MP3/JPEG
    22LE5500      Edge LED    1920x1080   2.4 ms   5000000:1   100Hz   NetCast   Ethernet • Wifi • USB-MP3/JPEG
    26LE5500      Edge LED    1920x1080   2.4 ms   5000000:1   100Hz   NetCast   Ethernet • Wifi • USB-MP3/JPEG
    32LE5500      Edge LED    1920x1080   2.4 ms   5000000:1   100Hz   NetCast   Ethernet • Wifi • USB-MP3/JPEG  black and purple
    37LE5500      Edge LED    1920x1080   2.4 ms   5000000:1   100Hz   NetCast   Ethernet • Wifi • USB-MP3/JPEG
    42LE5500      Edge LED    1920x1080   2.4 ms   5000000:1   100Hz   NetCast   Ethernet • Wifi • USB-MP3/JPEG
    47LE5500      Edge LED    1920x1080   2.4 ms   5000000:1   100Hz   NetCast   Ethernet • Wifi • USB-MP3/JPEG
    37LE5510      Edge LED    1920x1080   2.4 ms   5000000:1   100Hz   NetCast   Ethernet • Wifi • USB-MP3/JPEG  black and brown
    42LE5510      Edge LED    1920x1080   2.4 ms   5000000:1   100Hz   NetCast   Ethernet • Wifi • USB-MP3/JPEG
    47LE5510      Edge LED    1920x1080   2.4 ms   5000000:1   100Hz   NetCast   Ethernet • Wifi • USB-MP3/JPEG
    55LE5510      Edge LED    1920x1080   2.4 ms   5000000:1   100Hz   NetCast   Ethernet • Wifi • USB-MP3/JPEG
    32LE7510      LED plus    1920x1080   2.4 ms   5000000:1   100Hz   NetCast   Ethernet • Wifi • USB • Bluetooth
    37LE7510      LED plus    1920x1080   2.4 ms   5000000:1   100Hz   NetCast   Ethernet • Wifi • USB • Bluetooth
    42LE7510      LED plus    1920x1080   2.4 ms   5000000:1   100Hz   NetCast   Ethernet • Wifi • USB • Bluetooth
    47LE7510      LED plus    1920x1080   2.4 ms   5000000:1   100Hz   NetCast   Ethernet • Wifi • USB • Bluetooth
    55LE7510      LED plus    1920x1080   2.4 ms   5000000:1   100Hz   NetCast   Ethernet • Wifi • USB • Bluetooth
    42LE8500   Full LED Slim  1920x1080   2.2 ms   9000000:1   200Hz   NetCast   Ethernet • Wifi • USB • Bluetooth  THX
    47LE8500   Full LED Slim  1920x1080   2.2 ms   9000000:1   200Hz   NetCast   Ethernet • Wifi • USB • Bluetooth  THX
    55LE8500   Full LED Slim  1920x1080   2.2 ms   9000000:1   200Hz   NetCast   Ethernet • Wifi • USB • Bluetooth  THX
    LE9500

    42LX6500   Full Led 3D    1920x1080   2.2m/s   8000000:1  200Hz  USB - MP3/JPEG/MPEG 2/4(DivX HD)
    47LX6500   Full Led 3D    1920x1080   2.2m/s   8000000:1  200Hz  USB - MP3/JPEG/MPEG 2/4(DivX HD)
    47LX9500   Full Led 3D    1920x1080      2m/s  10000000:1  400Hz  USB - MP3/JPEG/MPEG 2/4(DivX HD)
    55LX9500   Full Led 3D    1920x1080      2m/s  10000000:1  400Hz  USB - MP3/JPEG/MPEG 2/4(DivX HD)

    LG LE8500 & LE9500 Full LED Slim thickness of the frame is only 8.5 mm.
    LE8500 model is presented as 200Hz (100Hz +100 Hz), as a model LE9500 400Hz (200Hz +200 Hz).
    For those who do not understand the 200 Hz +200 Hz'll just tell them that the panel operates at 200 Hz and backlight "blinking" 200 times per second, so we have witnessed the 400Hz scan. LG calls it TruMotion 400Hz.
    Both models differ in thickness. For example 47LE850 thickness is 2.5 cm, and 47LE9500 thickness 2.3 cm. Producer for both series TVs, LE9500 & LE8500, 42, 47 and 55 inches gives a dynamic contrast 7.000.000:1.

    Code:
    Inches        LED Units          Local Dimming Areas
    55                  1200                       240
    47                   864                        216
    42                   768                        192

    INPUT LAG
    Code:
    [b]Marca     Model       Standard  	 Game mode[/b]
    LG  	  32 LD358  	 13 ms  	8 ms
    LG  	  42 LD458  	 20 ms  	17 ms
    LG  	  37LE5308  	 57 ms  	33 ms
    LG  	  37LE5800  	 67 ms  	50 ms
    LG  	  47 LX9800  	117 ms  	103 ms


    LG Video Call Camera AN-VC100
    LG AN-VC100 Accessories - Video Call Camera - LG Electronics US
    http://i.itnews.com.ua/news/2010-01/26-17.jpg
    YouTube - CES 2010: LG Skype video conferencing camera


    LG AN-WF100 Wireless LAN adaptor
    LG AN-WF100 Accessories TV/Audio/Video
    characteristics:
    ► Name: WiFi access point
    ► SOC: BCM4323 (Mac / Phy / Radio)
    ► IEEE standard: 802.11a/b/g/n
    ► Frequency: double (2,4 GHz, 5GHz)
    ► 20Mz and 40Mz Channels
    ► 2 flows to 300Mbit/s (phy rate)
    ► antenna: 2 x 2 (Tx, RX)
    ► Support USB 2.0
    ► Privacy Open, WEP, TKIP, AES, WPA, WPS (PIN, PBC)
    http://www.broadcom.com/products/Wireless-LAN/802.11-Wireless-LAN-Solutions/BCM4323


    How to decipher the model? Example 47LH7020
    47-screen size in inches
    L - LCD display technology
    H - Year of model
    * B - 2004 / 2007 and
    * C - 2005
    * F - 2007 / and 2009 /
    * G - 2008 CCFL
    * H - 2009 HCFL
    * X - 2010 Full Led 3D
    * E - 2010 Full Led
    * D - 2010 CCFL
    7 - Series and Class
    * 9 - flagship series
    * 8 - top series
    * 7 - top series
    * 6 - average series
    * 5 - average series
    * 4 - budgetary series
    * 3 - budgetary series
    * 2 - home series
    0 - design and color of the hull
    20 - stand design
    * 50 -
    * 40 -
    * 30 -
    * 20 -
    * 10 -
    Colors are as follows
    Grace Brown, Turkey Green, Silkey Blue, Evening Purple, Noble Titan


    How to decipher the letters after the model ?
    Look at the label on the back of the TV-example 19LH2000-ZA.ARURLBU
    Z - regional destination
    * Z - Europa
    * U - Asia
    * T - Miedlle East, Africa
    * N - North America
    * A - Australia
    * S-South America
    A - Design of the hull and stand
    * A - LH2000 LH3000 LH4000 LH5000
    * C - LH2010 LF2510 LH3010 LH7000
    * C -
    * D - LH3020
    * E -
    * F -
    * N -
    A place where the PCB
    * A - LGElectronics Korea
    * C - LGElectronics Rusia
    RU - where it is intended to
    * RU - Russia
    * EU - Europe
    * EK -?
    * EC -?
    * MF - Middle East
    * DR - Region Germany / Germany, Switzerland, Austria /?
    R - revision of the objective of the model matrix
    * R - LG Display Co.Ltd. TN
    * Y - LG Display Co.Ltd. IPS
    * U - LG Display Co.Ltd. IPS WUN SAB1/SAB2
    * P - LG Display Co.Ltd. IPS WXN SBA1/SBA2
    * Q - LG Display Co.Ltd. IPS WXN SAA1/SAA2
    * V - LG Display Co.Ltd. IPS WUD SBA1/SBA2
    * G - CHI MEI OPTOELECTRONICS CORP. TN
    * H - CHI MEI OPTOELECTRONICS CORP. S-MVA
    * D - AU OPTRONICS CORP. TN
    * T - AU OPTRONICS CORP. AMVA
    * M - SHARP CORPORATION VA
    * S - SHARP CORPORATION VA
    * W - LG Display Co.Ltd. S-IPS
    L -??
    * L -?
    * W -?
    BU - part of the assembly / production
    * JG - Poland
    * JU - Russia
    * LH - Korea
    * BU -?
    * MG -


    How to count the serial number / Serial number /?
    The first digit - year of manufacture
    * 7-2007
    * 8-2008
    * 9-2009
    * 10-2010
    The second and third digit-month production
    * 04 - April
    * 05 - May
    * 09 - September
    * 10 - October
    The first letter is the place of production
    * K - Korea
    * R - Russia
    * W - Poland

    examples
    710KCFT0A131 October 2007 in Korea
    003KCVU8P055 March 2010 in Korea
    005RAKZ1Y677 May 2010 in Russia
    004RAZAOL541 April 2009in Russia
    909RAQR2H076 September 2009 in Russia


    http://www.lgcorp.com/index.jsp
    http://www.lge.com/common/index.jsp
    http://www.lginfinia.com/sg/
    http://www.lgesuppliers.com/portal/jsp/login/Login.jsp
    http://www.lgblog.co.uk/
    http://twitter.com/LGBlogUK
    http://www.flickr.com/photos/lgblog
    http://www.facebook.com/pages/LG-Mobile/23053284719
    http://lgknowledgebase.com/kb/
    • Thanks Thanks x 1
    Last edited: Dec 28, 2010
  24. hristoslav2

    hristoslav2 Member

    Joined:
    Jul 6, 2009
    Messages:
    559
    Trophy Points:
    43
    Ratings:
    +191
    Sharp Corporation

    AQUOS = AQUA + QUALITY



    History
    Sharp Corporation is a Japanese electronics manufacturer, founded in September 1912. It takes its name from one of his first inventions, namely: mechanical pens / from there comes the slogan-EVER SHARP-ever acute /, which was invented by Tokuji Hayakawa in 1915. Since then has developed into one of the leading electronics companies worldwide.
    Mining public popularity in the UK, where the sponsor of Manchester United from 1982 to 2000, which is a period of great success for the club.
    In 2007 bought a controlling stake in Pioneer. On June 25, 2009 Pioneer merging with optics business under the name of Pioneer Digital Design and Manufacturing Corporation.
    http://en.wikipedia.org/wiki/Sharp_Corporation
    Tokyo Ichigaya Bldg., in Shinjuku, Tokyo, Japan
    http://commons.wikimedia.org/wiki/File:Sharp_Corporation_(Tokyo_Ichigaya_Bldg.).jpg
    http://commons.wikimedia.org/wiki/File:Sharp_Head_Office.jpg

    Aquos History Movie 2010
    http://www.youtube.com/v/4X00QGz857...xcfcfcf&hl=en_US&feature=player_embedded&fs=1

    Global site
    http://sharp-world.com/worldwide/index.html
    Еuropean site http://www.sharp.eu/eu

    They have two factories for LCD displays in Japan
    http://commons.wikimedia.org/wiki/File:SHARP_KAMEYAMA_Plant_No1._.jpeg
    http://commons.wikimedia.org/wiki/File:SHARP_KAMEYAMA_Plant_No2._.jpeg

    And three TVs plant in Europe, France, Spain and Torun, Poland.
    Televisions writes that are manufactured in Japan, because the LCD panel and chassis are made there. If you look in some boxes you wrote Poland or Spain. Anyway, that's not a problem - their assembly is very high. In this benchmark Sharpe are the leading places.
    http://www.aquos-world.com/

    News from Sharp
    http://www.sharpnews.co.uk/
    http://www.sharp-world.com/corporate/news/index.html
    http://www.sharpusa.com/AboutSharp/NewsAndEvents.aspx

    Instruction manual
    http://www.sharpelectronics.info/Manuals.aspx
    http://www.sharp.eu/cps/rde/xchg/eu...wnloads.htm?searchProduct=1&query=LC-32DH510E

    European parts center Sharp
    https://epc.sharp.eu/is-bin/INTERSH...tart;sid=mY63aFJZ8__7ahmOUskxK1hT_jih5QQHlZ4=
    http://esupport.sharp.pl/?TemplateLang=en

    http://www.youniik.com/en/index.html
    http://www.facebook.com/SharpAQUOS
    http://twitter.com/Sharp_USA
    http://www.youtube.com/sharpelectronicsusa


    Code:
       model    backlight    contrast    freq   panel   time shift  dlna  wi-fi           USB         DVix   tuner       speakers/W   Subwoofers/W   HDMI 1.4/1.3    DVD player
    LC-19S7E       CCFL        7500:1    50Hz    RGB        No       No     No          No/No/No       No    analog          2/3+3          No          -/1
    LC-26S7E       CCFL        8000:1    50Hz    RGB        No       No     No          No/No/No       No    analog          2/5+5          No          -/2
    LC-32S7E       CCFL        4000:1    50Hz    RGB        No       No     No          No/No/No       No    analog          2/5+5          No          -/2

    LC-19SH7E      CCFL        7500:1    50Hz    RGB        No       No     No          No/No/No       No    DVB-T           2/3+3          No          -/1
    LC-26SH7E      CCFL        8000:1    50Hz    RGB        No       No     No          No/No/No       No    DVB-T           2/5+5          No          -/2
    LC-32SH7E      CCFL        4000:1    50Hz    RGB        No       No     No          No/No/No       No    DVB-T           2/5+5          No          -/3
    LC-42SH7E      CCFL       12000:1    50Hz    RGB        No       No     No          No/No/No       No    DVB-T           2/10+10        No          -/3

    LC-19DV200E    CCFL       25000:1    50Hz    RGB        No       No     No          No/No/No       SD    DVB-T           2/1.5+1.5      No          -/1             yes
    LC-22DV200E    CCFL       25000:1    50Hz    RGB        No       No     No          No/No/No       SD    DVB-T           2/3+3          No          -/1             yes
    LC-26DV200E    CCFL       25000:1    50Hz    RGB        No       No     No          No/No/No       SD    DVB-T           2/10+10        No          -/2             yes
    LC-32DV200E    CCFL       25000:1    50Hz    RGB        No       No     No          No/No/No       SD    DVB-T           2/10+10        No          -/2             yes

    LC-32CT2E      CCFL        5000:1    50Hz    RGB        No       No     No       No/Photo/Music    No    DVB-T2          2/6+6          No          -/3
    LC-42CT2E      CCFL       20000:1    50Hz    RGB        No       No     No       No/Photo/Music    No    DVB-T2          2/8+8          No          -/3

    LC-32DH500E    CCFL       25000:1    50Hz    RGB        No       No     No     Video/Photo/Music   SD    DVB-T           2/10+10        No          -/2
    LC-32DH510E    CCFL       25000:1    50Hz    RGB        No       No     No     Video/Photo/Music   SD    DVB-T           2/10+10        No          -/2

    LC-32FS510E    CCFL       25000:1    50Hz    RGB        No       No     No     Video/Photo/Music   SD    DVB-T           2/10+10        No          -/2

    LC-32FB500E    CCFL       25000:1    50Hz    RGB        No       No     No     Video/Photo/Music   SD    DVB-T           2/10+10        No          -/2
    LC-32FB510E    CCFL       25000:1    50Hz    RGB        No       No     No     Video/Photo/Music   SD    DVB-T           2/10+10        No          -/2

    LC-32FH500E    CCFL       25000:1    50Hz    RGB        No       No     No     Video/Photo/Music   SD    DVB-T           2/10+10        No          -/2
    LC-32FH510E    CCFL       25000:1    50Hz    RGB        No       No     No     Video/Photo/Music   SD    DVB-T           2/10+10        No          -/2

    LC-19LE320E   LED-Edge    15000:1    50Hz    RGB        No       No     No     Video/Photo/Music   No    DVB-T/C         2/3+3          No          -/2
    LC-22LE320E   LED-Edge    15000:1    50Hz    RGB        No       No     No     Video/Photo/Music   HD    DVB-T/C         2/3+3          No          -/2
    LC-26LE320E   LED-Edge    30000:1    50Hz    RGB        No       No     No     Video/Photo/Music   HD    DVB-T/C         2/5+5          No          -/2
    LC-32LE320E   LED-Edge  2000000:1   100Hz    RGB        No       No     No     Video/Photo/Music   HD    DVB-T/C         2/10+10        No          -/3
    LC-37LE320E   LED-Edge  2000000:1   100Hz    RGB        No       No     No     Video/Photo/Music   HD    DVB-T/C         2/10+10        No          -/3
    LC-42LE320E   LED-Edge  2000000:1   100Hz    RGB        No       No     No     Video/Photo/Music   HD    DVB-T/C         2/10+10        No          -/3

    LC-32LE705E   Full-LED    30000:1    50Hz    RGB        No       No     No        No/Photo/Music   No    DVB-T/C         2/10+10        No          -/4
    LC-40LE705E   Full-LED  2000000:1   100Hz    RGB        No       No     No        No/Photo/Music   No    DVB-T/C         2/10+10        No          -/4
    LC-46LE705E   Full-LED  2000000:1   100Hz    RGB        No       No     No        No/Photo/Music   No    DVB-T/C         2/10+10        No          -/4
    LC-52LE705E   Full-LED  2000000:1   100Hz    RGB        No       No     No        No/Photo/Music   No    DVB-T/C         2/10+10        No          -/4

    LC-40LX810E   LED-Edge  4000000:1   100Hz    RGBY       No       No     No     Video/Photo/Music   HD    DVB-T/C         2/10+10        1/15        1/3
    LC-40LE810E   LED-Edge  4000000:1   100Hz    RGBY       No       No     No     Video/Photo/Music   HD    DVB-T/C         2/10+10        1/15        1/3
    LC-46LE810E   LED-Edge  4000000:1   100Hz    RGBY       No       No     No     Video/Photo/Music   HD    DVB-T/C         2/10+10        1/15        1/3
    LC-40LE812E   LED-Edge  4000000:1   100Hz    RGBY       No       No     No     Video/Photo/Music   HD    DVB-T/C/S/S2    2/10+10        1/15        1/3
    LC-46LE812E   LED-Edge  4000000:1   100Hz    RGBY       No       No     No     Video/Photo/Music   HD    DVB-T/C/S/S2    2/10+10        1/15        1/3
    LC-40LE820E   LED-Edge  5000000:1   100Hz    RGBY      8Gb      Yes     No     Video/Photo/Music   HD    DVB-T/C         2/10+10        1/15        1/3
    LC-46LE820E   LED-Edge  5000000:1   100Hz    RGBY      8Gb      Yes     No     Video/Photo/Music   HD    DVB-T/C         2/10+10        1/15        1/3
    LC-52LE820E   LED-Edge  5000000:1   100Hz    RGBY      8Gb      Yes     No     Video/Photo/Music   HD    DVB-T/C         2/10+10        1/15        1/3
    LC-40LE822E   LED-Edge  5000000:1   100Hz    RGBY      8Gb      Yes     No     Video/Photo/Music   HD    DVB-T/C/S/S2    2/10+10        1/15        1/3
    LC-46LE822E   LED-Edge  5000000:1   100Hz    RGBY      8Gb      Yes     No     Video/Photo/Music   HD    DVB-T/C/S/S2    2/10+10        1/15        1/3
    LC-52LE822E   LED-Edge  5000000:1   100Hz    RGBY      8Gb      Yes     No     Video/Photo/Music   HD    DVB-T/C/S/S2    2/10+10        1/15        1/3
    LC-60LE822E   LED-Edge  5000000:1   100Hz    RGBY      8Gb      Yes     No     Video/Photo/Music   HD    DVB-T/C/S/S2    2/10+10        1/15        1/3

    LC-40LE900E   LED-Edge  6000000:1   200Hz    RGBY      8Gb      Yes     Yes    Video/Photo/Music   HD    DVB-T/C         2/10+10        1/15
    LC-40LE921E   LED-Edge  6000000:1   200Hz    RGBY      8Gb      Yes     Yes    Video/Photo/Music   HD    DVB-T2/C        2/10+10        1/15
    LC-46LE900E   LED-Edge  6000000:1   200Hz    RGBY      8Gb      Yes     Yes    Video/Photo/Music   HD    DVB-T/C         2/10+10        1/15
    LC-46LE921E   LED-Edge  6000000:1   200Hz    RGBY      8Gb      Yes     Yes    Video/Photo/Music   HD    DVB-T2/C        2/10+10        1/15
    LC-46LE925E   LED-Edge  6000000:1   200Hz    RGBY      8Gb      Yes     Yes    Video/Photo/Music   HD    DVB-T2/C/S/S2   2/10+10        1/15
    LC-52LE900E   LED-Edge  6000000:1   200Hz    RGBY      8Gb      Yes     Yes    Video/Photo/Music   HD    DVB-T/C         2/10+10        1/15
    LC-52LE925E   LED-Edge  6000000:1   200Hz    RGBY      8Gb      Yes     Yes    Video/Photo/Music   HD    DVB-T2/C/S/S2   2/10+10        1/15
    LC-60LE900E
    LC-68LE900E

    Time shift - a record of transmission of external USB flash drive
    810 - black frame and wide gray border
    820 - seamless design-glass frame + roof and thin gray border
    BOXER caption in the ad sticker pasted on the model LE820 indicates pay-per-view in the Nordic /Scandinavian/countries.

    INPUT LAG
    Marca Model Standard Game mode
    Sharp LC-22LE320E 17 ms 17 ms
    Sharp LC-40LE820 140 ms 17 ms
    Sharp LC-42SH7 30 ms 30 ms
    Sharp LC-46LE810 143 ms 30 ms
    Sharp LC-46LE820 100 ms 13 ms
    Sharp LC-52LE820 143 ms 37 ms

    LC-60LE822E - Piano black and mirror glass front, silver frame
    LC-52LE820E - Piano black and mirror glass front, silver frame
    LC-46LE820E - Piano black and mirror glass front, silver frame
    LC-46LX810E - Piano black front and black frame
    LC-46LE810E - Piano black and mirror front, silver frame
    LC-40LE820E - Piano black and mirror glass front, silver frame
    LC-40LX810E - Piano black front and black frame
    LC-40LE810E - Piano black and mirror front, silver frame
    LC-42LE320E - Black front and foot, white frame and back
    LC-37LE320E - Black front and foot, white frame and back
    LC-32LE320E - Piano black frame, piano white back, piano black foot
    LC-32FH510E - Black+blue front design element
    LC-32DH510E - Black
    LC-32DH500E - Black
    LC-26LE320E - Piano black frame, piano white back, piano black foot
    LC-22LE320E - Piano black frame, piano white back, piano black foot
    LC-19LE320E - Piano black frame, piano white back, piano black foot


    How to decipher the abbreviation of the model SHARP? example LC40LE820E
    LC - technology-Liquid Cristal
    46 - size in inches diagonal
    L - band
    * D - HD Ready with integrated Blu-ray
    * F - FullHD
    * H -
    * S -
    E - Housing Design of corps
    * E - Standard
    * X - Order of Distributors
    * U -
    * C -
    8 - Series
    * 9 - flagship series
    * 8 - top series
    * 7 - average number
    * 6 - average number
    * 5 - Budget Series
    * 4 - Budget Series
    * 3 - home series
    2 - downseries
    * 1 -
    * 2 - (built-in hard drive?)
    0 - Tuner
    * 0 - DVB-T / C
    * 1 - DVB-T2 / C
    * 2 - DVB-T/C/S2
    E - area code
    * E - Europe
    * S - Scandinavia - / Finland, Sweden, Denmark, Norway /
    * R - Russian / RU /
    * U - Latin America
    * UN - North America / Canada, USA, to meet US, UM, UN and UT
    * M - Asia / India, Singapore, Thailand, Vietnam .. /
    * A - China
    * H - Hong Kong
    * T - Taiwan
    * X - Australia, New Zealand
    * NZ - New Zealand
    V - hull color
    * V - gloss piano black with silver frame
    * BK - black
    * GY - Grey
    * WH - white
    * RD - red
    Last edited: Aug 19, 2010
  25. hristoslav2

    hristoslav2 Member

    Joined:
    Jul 6, 2009
    Messages:
    559
    Trophy Points:
    43
    Ratings:
    +191
    SONY 2010

    BRAVIA - "Best Resolution Audio Visual Integrated Architecture". and was invented by marketers to the company's LCD TVs Sony, in line with the Italian word BRAVO (ital. bravo - nice, lovely), and obviously designed for positive emotions in potential buyers.
    /only for Europe. For USA is XBR/

    History
    The company was founded by Akio Morita and Masaru Ibuka of - 7 May, 1946. The first name of the company is Totsuko. Initially, the company produces plates for cooking rice. Since it appears that production is not the most profitable company soon focused on the manufacture of electronic equipment for leisure time.
    Company marks first success with the acquisition of a license to produce transistors. In 1958 the company was renamed and given its present name SONY. The new name combines the Latin sonus (sound) and English Sonny Boys. Sony is the first Japanese company, which displays his name in Latin - a fact which raises much discussion in the post-war Japanese society.
    http://www.sony.net/SonyInfo/CorporateInfo/History/
    Have factories in Barcelona (Spain), Kaliningrad (Russia) and Trnava (Slovakia).

    Global site
    http://www.sony.net/
    European site
    http://www.sony-europe.com/pages/europe/sony_europe.html

    Sony Electronics Blog
    http://www.sonyelectronicscommunity.com/sony/default.aspx

    http://www.sonyproductinformation.be/
    http://www.sonyproductinformatie.nl/2010/index.php

    News from Sony
    http://presscentre.sony.eu/default.aspx
    http://www.sony.net/SonyInfo/News/Press/index.html
    http://news.sel.sony.com/en/press_room/consumer
    http://www.sony-cn.info/
    http://www.sonyinsider.com/

    Service news
    http://support.sony-europe.com/hotnews/showall.aspx?site=odw_en_EN
    http://www.sony-optiarc.eu/supportservice/downloads.html

    Check serial number
    http://web.sony.ru/cgi-bin/sck.cgi

    http://www.fullhd.gr/images/stories/2010/Mai-2010/May-2010-9/sony edge led (2).JPG
    http://www.fullhd.gr/images/stories/2010/Mai-2010/May-2010-9/sony edge led.JPG
    http://forum.ixbt.com/post.cgi?id=attach:62:15330:4107:1

    How to count model? Sony KDL40NX800K/B
    K - an abbreviation for television
    D - mean Digital / Display /
    L - LCD technology
    40 - size in inches
    N - Series
    * H - Hi / 3D / (Cinematic) Expert
    * N - Normal (Presence) style
    * L - Lux (Signature) status
    * E - Esential (Essential) trend
    * B - Base - base series
    X - Year of the model /2010 /
    8 - class
    * 9 - flagship
    * 8 - top
    * 7 - average
    * 6 - average
    * 5 - Budget
    * 4 - base
    0 - design and color of the hull
    * 9 -
    * 8 -
    * 7 -
    * 6 -
    * 5 -
    * 4 -
    * 3 -
    * 2 -
    * 1 - / EX710 /
    0 - variations in design and tuners
    * 9 - DVB-T/C/S2 / EX709 /
    * 8 - DVB-T/C/S2 / EX708, EX508 /
    * 7 - DVB-T/C/S2 / NX807/EX707, EX507 /
    * 6 - DVB-T/C/S2 /EX706 /
    * 5 - DVB-T/C/S/S2 /LX905/HX905/NX805, NX705/EX705, EX605, EX505, EX405 /
    * 4 - DVB-T/C /LX904 /
    * 3 - DVB-T2/C /LX903/NX803, NX703.NX503/EX703, EX603, EX503, EX403 /
    * 2 - DVB-T/C /EX502, EX402, EX302/BX302 /
    * 1 - DVB-T/C /NX901, NX801, NX701/EX701, EX501/BX301 /
    * 0 - DVB-T/C /NX810, NX710/EX710/EX700, EX600, EX500
    K - area code
    * K - means the Central and Eastern Europe
    * U - area code for the UK / adopt BG-PAL-I /
    * AEP - means The European model / All Europian Produkt /
    * E - area code for Europe
    * R - Russia
    B - body color
    * B - black
    * W - White



    https://servicesplus.us.sony.biz/groupid132601.aspx
    40HX800 LTY400HL02 Samsung S-PVA
    55EX500 LTY550HJ01 Samsung S-PVA
    52EX700 LCD PANEL Sharp 52LEST
    46EX500 LTY460HJ01 Samsung S-PVA
    40EX700 LK400D3LA4B Sharp
    40EX500 LTY 400HF06 Samsung S-PVA SLCD
    46EX500 LTY 460HJ01 Samsung S-PVA SLCD
    32EX500 LTY 320HF01 Samsung S-PVA SLCD
    37EX500 T370HW03 AUO A-MVA3
    46EX402 LTY 460HM01 Samsung S-PVA SLCD
    37EX402 T37HW03 AUO A-MVA3
    32EX402 LTY 320HM01 Samsung S-PVA SLCD
    32EX302 LTY 320AP04 Samsung S-PVA SLCD
    55EX500 LTY 550HJ01 Samsung S-PVA SLCD


    22BX300-T216XW01 V3 AUO
    22EX308-T216XW01 V3 AUO

    26BX30H-26B3-05 CHI MEI
    26BX300 -26V0 AUO
    26BX300-LTY[Z]320AP04-001 Samsung

    32EX300-LTY[Z]320AP04-001 Samsung
    32EX305-LTY[Z]320AP04-003 Samsung
    32EX400,32EX405-LTY[Z]320HM01-A02 Samsung
    32EX500-LTY[Z]320HF01-A03 Samsung
    32EX600,32EX605-LTY[Z]320HM02-001 Samsung
    32EX700,32EX705-LK315D3LA4S Sharp

    37EX500-T370HW03 V9 AUO

    40EX400/401-LTY[Z]400HM01-A05 -A06 Samsung
    40EX500-LTY[Z]400HF06-002 Samsung
    40EX600,EX605-LTY[Z]400HM02-001 Samsung
    40EX700-LK400D3LA4S Sharp
    40HX70*-LTY[Z]400HL01-001 Samsung
    40HX800-LTY[Z]400HL02-001 Samsung
    40NX700-LK400D3LA4S Sharp
    40NX705- LK400D3LA4T Sharp

    46EX400-LTY[Z]460HM01-A02 Samsung
    46EX405- LTY[Z]460HM01-001 Samsung
    46EX500- LTY[Z]460HJ01-A02 Samsung
    46EX600- LTY[Z]460HM02-001 Samsung
    46EX700- LK460D3LA8S Sharp
    46EX700- LTY[Z]460HJ02-001 Samsung
    46HX701- LTY[Z]460HQ02-001 Samsung
    46HX800- LTY[Z]460HQ03-001 Samsung
    46NX700- LK460D3LA8S Sharp
    46NX705- LK460D3LA8T Sharp
    46NX800- LK460D3LA9S Sharp

    52EX700- LK520D3LB1S Sharp
    52NX800- LK520D3LB2S Sharp

    55EX500,EX505- LTY[Z]550HJ01-002 Samsung
    55HX701-LTY[Z]550HQ01-001 Samsung
    55HX800- LTY[Z]550HQ02-001 Samsung

    60EX500- LK600D3LA3S Sharp
    60EX700- LK600D3LA5S Sharp
    60EX703- LK600D3LA5S Sharp
    60NX801- LK600D3LA6S Sharp
    • Thanks Thanks x 1
    Last edited: Apr 22, 2011
  26. hristoslav2

    hristoslav2 Member

    Joined:
    Jul 6, 2009
    Messages:
    559
    Trophy Points:
    43
    Ratings:
    +191
    PANASONIC Corporation
    Matsupoopa Electric Industrial Co., Ltd.

    "VIERA" - "Visual Era".

    History
    Panasonic is an international brand name for Japanese electric products Matsupoopa Electric Industrial Co. Under the brand name company that trades with plasma and LCD displays, DVD drives and players, Blu-ray Disc players, cameras, telephones, vacuum cleaners, microwave ovens, digital cameras, batteries, laptop computers, portable CD-s, home cinemas. On January 10, 2008 Matsupoopa change the company name in the new Panasonic Corporation-the third-largest producer of televisions.
    http://en.wikipedia.org/wiki/Panasonic_Corporation

    In Europe has plants in Pilsen - Czech Republic and Kaliningrad - Russia.
    In North America, two plants - San Diego -USA and Mexico -Tijana
    In South America, one in Manaus- Brazil
    In Asia - Singapore and Taiwan

    U Panasoniku 1068/1, Plzen, 320 84, Czech Republic
    tel 420 378 211 111, fax 420 378 211 128 ,
    http://www.pavccz.panasonic.cz/


    Matsupoopa Plasma Display Panel Company Ltd. There are 6 plant plasma panels.
    Five factories in Japan - Ibaraki1, Ibaraki2, Amagasaki one, Amagasaki 2, Amagasaki 3 and one in Shanghai China

    Download
    http://www.panasonic.co.uk/html/en_GB/220239/index.html
    http://dlc.panasonic-europe-service.com/EUDocs/default.aspx


    Viera Cast
    http://www.vidadigitalradio.com/wp-content/uploads/2009/11/panasonic-viera-cast.jpg
    Skype, Twitter, Acetrax, YouTube, Picasa, Bloomberg News, The Weather Channel, Amazon Video on Demand, Netflix, Fox Sports, Pandora

    THX certified models
    http://www.thx.com/consumer/home-entertainment/thx-certified-products/

    Check the serial number
    http://www.panasonic.ru/support/gwarranty/serials/
    http://service.panasonic.ru/Models/SerialValidator.aspx

    Read the serial number
    http://www.panasonic.ru/support/support/general_info/decode_sn/#01
    Code Plant works - PAVCKM (Malaysia), N, F, G - Plant PAVCZ (Czеch)

    Code:
    model                resolution         panel         contrast      MR   Processor          IFC        Consumption
    TX-L42V20E (42”)     1920x1080     LED LCD AS-IPS    2,000,000:1   800   Vreal Pro 5          IFC Pro    152 W
    TX-L37V20E (37”)     1920x1080     LED LCD IPS-Pro   2,000,000:1   800   Vreal Pro 5          IFC Pro    147 W

    TX-L37D28E (37”)     1920x1080     LED LCD IPS-Pro   2,000,000:1   800   Vreal Pro 5          IFC Pro    147 W
    TX-L32D28E (32”)     1920x1080     LED LCD IPS-Pro   2,000,000:1   800   Vreal Pro 5          IFC Pro    136 W
    TX-L22D28 (22”)       1366x768     LED LCD                         300   Vreal Pro 5                      44 W
    TX-L19D28 (19”)       1366x768     CCFL LCD                        300   Vreal Pro 5                      39 W

    TX-L42D25E (42”)     1920x1080     LED LCD AS-IPS    2,000,000:1   800   Vreal Pro 5          IFC Pro    152 W
    TX-L37D25E (37”)     1920x1080     LED LCD IPS-Pro   2,000,000:1   800   Vreal Pro 5          IFC Pro    147 W
    TX-L32D25E (32”)     1920x1080     LED LCD IPS-Pro   2,000,000:1   800   Vreal Pro 5          IFC Pro    136 W

    TX-L42G20E (42”)     1920x1080     CCFL LCD AS-IPS      20 000:1   720    Vreal Pro     100 Hz IFC Pro   188 W
    TX-L37G20E (37”)     1920x1080     CCFL LCD IPS-Pro     20 000:1   720    Vreal Pro     100 Hz IFC Pro   150 W
    TX-L32G20E (32”)     1920x1080     CCFL LCD IPS-Pro     20 000:1   720    Vreal Pro     100 Hz IFC Pro   103 W

    TX-L42S20E (42”)     1920x1080     CCFL LCD AS-IPS      20 000:1   720    Vreal Pro 4   100 Hz IFC Pro    184 W
    TX-L37S20E (37”)     1920x1080     CCFL LCD IPS-Pro     20 000:1   720    Vreal Pro 4   100 Hz IFC Pro    145 W
    TX-L32S20E (32”)     1920x1080     CCFL LCD IPS-Pro     20 000:1   720    Vreal Pro 4   100 Hz IFC Pro    103 W

    TX-L42U2 (42”)       1920x1080     CCFL LCD AS-IPS      20 000:1          Vreal Pro 3
    TX-L37U2 (37”)       1920x1080     CCFL LCD IPS-Pro     20 000:1          Vreal Pro 3
    TX-L32U2 (32”)       1920x1080     CCFL LCD IPS-Pro     20 000:1          Vreal Pro 3

    TX-L32X25E (32”)     1366x768      CCFL LCD IPS-Pro     20 000:1   600        Vreal 5    100 Hz IFC Pro    95 W
    TX-L32X20E (32”)     1366x768      CCFL LCD IPS-Pro     20 000:1   300        Vreal 5    100 Hz            93 W
    TX-L26X20E (26”)     1366x768      CCFL LCD             20 000:1   300        Vreal 5    50 Hz             65 W
    TX-L22X20E (22”)     1366x768      CCFL LCD             20 000:1   300        Vreal 5    50 Hz             45 W

    TX-L32C20E (32”)     1366x768      CCFL LCD IPS-Pro     20 000:1   300        Vreal 4    50 Hz             93 W
    TX-L26C20E (26”)     1366x768      CCFL LCD             20 000:1   300        Vreal 4    50 Hz             65 W
    TX-L19C20E (19”)     1366x768      CCFL LCD             20 000:1   300        Vreal 4    50 Hz             36 W

    TX-L32C2E (32”)      1366x768      CCFL LCD IPS-Pro     20 000:1   300        Vreal 4    50 Hz             93 W

    TX-L32G20E: IPS-Pro (Alpha); Hitachi/Panasonic
    TX-L37G20E: IPS-Pro (Alpha); Hitachi/Panasonic

    TX-L42V20E: Super-IPS LGDisplay

    TX-L37D25E: Super-IPS LGDisplay
    TX-L42D25E: Super-IPS LGDisplay

    TX-L37D28EW: Super-IPS LGDisplay

    Panasonic TX-L42G20 - Super-IPS LGDisplay

    All models with sizes of 32 and most of 37 inches are placed IPS-Pro Hitachi/Panasonic
    All models in sizes from 42 inches have placed S-IPS matrices from LGDisplay
    This is because only since April this year started to produce 42 inches size IPS-Pro that are primarily for Japanese market
    All models under 32 inches diagonally placed a VA matrix


    How to decipher the abbreviation of the Panasonic model 2009, 2010?
    example-TX-L42V20ES
    T - TV
    X - continental destination
    • X - Europe
    • H - to the Middle East, Asia, Australia and New Zealand
    • C - North and South Amerika
    L - LCD
    42 - screen size in inches
    V - Set
    • D - flagship series with Led
    • V - flagship series
    • G - peak series
    • X - Budget range
    • U - Budget range
    • C -
    • S - home series
    • A - basic series /for Asia/
    2 - Year of model:
    • 1 - 2009
    • 2 - 2010
    0 - set design:
    • 0 - Black /G20/
    • 1 - Grey /G21/
    • 2 - /G22 /
    • 3 - /G23 /
    • 4 - /G24 /
    • 5 - /G25/
    Y - use regional /integrated tuners/:
    • Y - Europa DVB-T / C (MPEG2 and MPEG4-AVC (H.264))
    • E - Europa DVB-T (MPEG2 and MPEG4-AVC (H.264))
    • B - Britain TX-L42V20B
    • B - Brasil TC-L42V20B
    • S - Singapure, Indonesia and Philipinnes TH-L42V20S
    • P - Saudi Arabia DVB-T TH-L42V20P
    • K - Asia - Malaysia TH-L42V20K
    • A - Australia TH-L42V20A
    • Z - New Zeeland TH-L42V20Z
    • T - Thailand TH-L42V20T
    • M - Kuwait, UAE, Egypt, Lebanon, Syria TH-L42V20M
    • C - China TH-L42V20C
    • H - Hong Kong TH-L42V20H
    • D - India, Nepal TH-L42V20D
    • R - Iran TH-L42V20R
    • W - Taiwan TH-L42V20W
    • U - United states TC-L42V20U
    • X - Mexico TC-L42V25X
    • TX-PR 65V10 - Russia, Ukraine, Belarus, Kazakhstan
    • TX-PF 65V10 - France
    S - hull color:
    • - - there is no point black /black/
    • W - white / white
    • P - purple / purple
    • S - silver / silver


    Design
    2-design frame and stand
    21-design frame and stand
    22-design frame and stand
    23-design frame and stand
    24-design frame and stand
    25-design frame and stand
    28-design frame and stand


    http://www.panasonic.net/

    http://www.panasonic-europe.com/
    http://ex-blog.panasonic.co.jp/exhibition/en
    http://panasonic.net/
    http://panasonic.com/
    http://www.vieraexperience.com/
    http://www.viera.tv/records.xml
    http://panasonic.net/avc/viera/
    http://3d.panasonic.net/en/
    http://ch.panasonic.co.jp/global/index.html
    http://panasonic.net/olympic
    http://panasonic.com/ces2010
    http://panasonic.eu
    http://youtube.com/panasonic
    http://panasonic.net/avc
    http://vieraneopdp.panasonic.eu
    http://600hz.eu
    http://vieraexperience.com
    http://www.vieraexperience.com/
    http://www.viera.tv/records.xml
    http://3d.panasonic.net
    http://youtube.com/user/panasonic3d
    http://panasonic.com/3d
    http://3dgame.panasonic.eu
    http://panasonic.net/avc/viera/popup/quick_analysis
    http://panasonic.net/avc/viera/3d
    http://panasonic.net/avc/vieralink
    http://panasonic.net/avc/viera/eu/viera-cast
    http://panasonic.net/avc/viera/eu/wireless_hd
    http://panasonic.net/avc/diga
    http://panasonic.net/blu-ray
    http://www.panasonic-electric-works.com/
    http://www.panasonic-broadcast.com/
    https://eww.pavc.panasonic.co.jp/pro-av/
    http://ch.panasonic.co.jp/global/index.html
    http://www.panasonic-europe.com/
    http://www.panasonic-electric-works.com/peweu/en/html/
    http://www.panasonic-broadcast.com/en/support/support-contacts/technical_support_links.php
    https://eww.pavc.panasonic.co.jp/pro-av/support/desk/e/index.htm
    Last edited: Aug 28, 2010
  27. hristoslav2

    hristoslav2 Member

    Joined:
    Jul 6, 2009
    Messages:
    559
    Trophy Points:
    43
    Ratings:
    +191
    How to decrypt the matrix?

    LG
    http://forum.ixbt.com/post.cgi?id=attach:62:14399:31:2


    Sharp
    http://forum.ixbt.com/post.cgi?id=attach:62:14399:95:1
    http://forum.ixbt.com/post.cgi?id=attach:62:14399:95:2
    http://forum.ixbt.com/post.cgi?id=attach:62:14399:95:3


    AUO
    http://forum.ixbt.com/post.cgi?id=attach:62:14399:31:1



    Starting point for judgment of cosmetic defects: any cosmetic defect is unacceptablewhen visible within 10 seconds at a viewing distance of 4 x height of the display.
    1. At all realistic test patterns and specified viewing anglesNote
    2. At ambient room conditions (25 ±3 oC, 65 ±5 % RH) with non-directive lighting (luminance 150 Lux) Note
    3. Customer opinion prevails.
    2009 waiver for LG,AUO,Sharp LCD panels:Min distance between defects: 15 mm.
    http://forum.ixbt.com/post.cgi?id=attach:62:14399:95:4
  28. hristoslav2

    hristoslav2 Member

    Joined:
    Jul 6, 2009
    Messages:
    559
    Trophy Points:
    43
    Ratings:
    +191
    http://en.wikipedia.org/wiki/Pixel
    Pixel is the smallest element that constructs a digital image. That point is very small with variable color and brightness.
    Image is made up of multiple pixels arranged in a rectangular grid with a resolution. Due to the small size of individual pixel human eye does not see "points" to perceive the whole image. There are different models for the pixel color, most often done by three color components - red, green and blue. Again the small size helps to color components are perceived by the human eye in a single color
    Code:
                     (Megapixels)                  Width x Height            Notes
    QVGA                0.077                            320×240
    VGA                 0.3                              640×480
    SVGA                0.5                              800×600
    XGA                 0.8                             1024×768   sometimes calling XVGA
    WXGA                1.0                            1280×800
    SXGA                1.3                            1280×1024
    WXGA+               1.3                            1440×900
    SXGA+               1.4                            1400×1050
    WSXGA+              1.7                            1680×1050
    UXGA                1.9                            1600×1200
    WUXGA               2.3                            1920×1200
    QXGA                3.1                            2048×1536
    WQXGA               4.1                            2560×1600
    QSXGA               5.2                            2560×2048
    WQSXGA              6.6                            3200×2048
    QUXGA               7.7                            3200×2400
    WQUXGA              9.2                            3840×2400

    For LCD monitors and digital cameras color pixel is obtained using three or more subpiksels containing information about the red, green and blue. When a pixel LCD monitors consists of 3 subpiksels (r, g, b)
    http://www.fullhd.gr/images/stories/lcd pixe2.jpg
    A digital camera at a pixel is obtained using neighboring pixels on it (at grating sensors with Baer grid)

    The standard ISO 13406-2 defines three different types of defective pixels:
    * Hot pixels (always included)
    * Dead pixels (always off)
    * Stuck pixels (one or more subpiksels are always included or always excluded)

    each pixel consists of three subpiksels of different colors (generally red, green and blue). Color picture that we see on screen is determined by a combination of colors of pixels. Each subpiksel is managed by its own transistor.

    Outcome of such a transistor built or its part-time leads to the formation of "burnt pixels."

    There are four types of "burnt pixels": the dead pixels hot pixels block pixels and defective pixels group: number of defective pixels in 5x5 pixel square.

    Dead pixels is a defective pixel that is permanently switched off. Dead pixels are seen best on a light background and appear as dark pixels are dots.This is not shine (always off).

    Hot pixel--lit constantly (on) a white pixel is called a hot pixel. Hot pixels are mostly visible on a black background appear as white point. In digital photography for the elimination of hot pixels is usually used so-called frame "dark current".

    Stuck pixel
    Stranded / block / pixel is usually best seen on a black background as red, green, blue, purple or yellow spots. The most common are red, green and blue. This is because some of subpiksels are always included or always excluded.
    Unlike dead pixels, users report that stuck pixels disappear. Some of the most popular methods for LCD monitors is to press gently and carefully sedentary pixel (thus it is reset) or dramatically change its value (flashing bright colors). Of course no guarantee that these methods will always work. In LCD TVs with glass and digital camera you can only wait and hope sedentary pixel disappear by itself.

    What is the problem? If the transistor does not work, then you can return the TV to be replaced or secured. However, technology for the production of panels is so complex that to get a large lot with no burnt pixels panels is impossible. And if the proceedings were only 'purely' panels, then the value of televisions would be very high.

    So "exhaust pixels» is divided into three types, and all panels are divided in 4 klassеs (agreed standard ISO-13406).
    A type - white pixel on a black background.
    Type 2 - black on white pixel.
    Type 3 - color (red, blue, green, yellow).

    The first class does not preclude the emergence of "burnt pixels»

    The second class allows the presence of 2-defect of type 1 and 2, and 5 - 3 type of defect. This class and the most razprostanen market for televisions. Therefore, the presence of 5 defective pixels on the views of producers is not a scraps.

    Third class may have burned five pixels of 1 type, 15 type 2 and 50 with defects of the third type.

    Fourth class may also have 50, 150 and 500 defect 1, 2 and 3 type respectively.

    Class...... Type 1 .....Type 2.....Type 3....... Type 4 .................
    .................................................. . .........cluster.... ......cluster
    .................................................. . ....... more than ......a mistake
    .................................................. . ........an error.......... type 3
    .................................................. . ..... type 1 or 2
    I. .............. 0 ........... 0 ........... 0 ......... ... 0 .................... 0
    II .............. 2 ........... 2 ........... 5 .......... ...0 .................... 2
    III ............. 5 ........... 15 ......... 50 ............ 0. ................... 5
    IV ............. 50 ....... 150 ..........500 ........... 5 ...... .............. 50
    In this image if the amount of burnt pixels does not exceed 0.001 percent - it is not brack.
    (1920 * 1080) * 0.001 / 100 = 20.736, ie if more than 20 pixels it's a warranty case.

    ISO 13406-2 - Wikipedia, the free encyclopedia).

    The determination of the existence of "burnt pixels' of an eye when viewing teleprogrammi or DVD is often difficult or impossible at all. For example, pixel locking can occur only in the form of a green dot on a red background and in the corner of the screen. You long to watch TV and do not notice so far is a small point, but the image is changing quickly enough and the combination of that particular place of these colors are not uncommon. Moreover, "burnt pixels» may occur over time as a result of breakthrough transistor responsible for that section of the screen.

    What to do if you discovered still on the screen of your TV broken pixel? Unfortunately, blackheads at home can not be fixed. But there are several methods which eliminate the block of pixels (colored dots). Methods are not one hundred percent, but may try.

    One out means for LCD televisions is: turn off the TV, and wrapped in something soft stick gently push the area where you noticed the inoperative pixel. </span>After several minutes of such massage - switching on the TV and look for results. Repeat if necessary.

    Another method suggests a computer connected to the TV and is suitable for LCD, and the plasmas. This not require direct physical contact, so it appears to be completely safe. One of the programs to remove the block of pixels across the page JScreenFix - Fix stuck pixels.

    For developers claim, the blocked pixels in most cases be removed after 20 minutes of use. But if not obtained, try to include program for 5-10 hours. The program performs fast changing colors of individual pixels, which allows program to include (or exclude) Blocking pixel. </span>After release of the program is displayed with blinking eye pixels. Just point to the defective area and expect results.

    And, finally, the most extreme, the third method (again for LCD panels). Here we must act very carefully, because you may damage your TV if direct with applied pressure. Initially to do near locking pixel black background (for example, establish a picture from a DVD or include an examination of photography with black background at this point). Now do not get a very sharp pencil. Put it on and gently pushing pixels. In place of pressure on the screen should appear white spot. If it does not appear, press a little harder. Click 5-7 times, each time a little louder. It is possible to help. But I repeat: be careful limit.

    Most accessible and effective means for displaying defective items is the verification of the TV before you buy a "burnt pixels" with the help of special programs. TV connects to your computer program is placed to verify the operator panel and carefully monitor defects in different colors,reproducible from the program. A prevention-not let the appearance of the discharge of static electricity on your TV and use protective equipment for your facilities.

    Check exhaust pixels
    UDPixel - udpix.free.fr

    https://www.pixelprotector.com/
    How to Fix a Stuck Pixel on an LCD Monitor - wikiHow
    LCD screens dead pixels (page 1: Dead pixels) - BeHardware

    screenfix.net
    This is a program to fix blocked pixels in LCD TVs or plasma screens burned

    For plasmas
    Often when viewing over long 5-6 hours of a television program to receive the logo mark / burn / a 'footprint' is obtained because phosphorus is outdated uneven - in this case the logo lit continuously, and the rest of the panel is not -> there </span>where the logo is outdated more phosphorus. printing is more pronounced in the early hours of the operation of TV-it (200), because then aged phosphorus most intense. then the aging process slows down and hence reduce the chance of imprint. White prints most.
    Early plasma TVs had the tendency to "burn" the screen. This problem is largely eliminated, thanks to new models of embedded systems safeguard against burning and phosphoric improved technology. Well that is key to avoid it, consists in this-TV-only to run a colorful picture for motion of pixels makes it where he wants


    How do I check for screen burn?
    Burn-in screen is visible when the plasma screens showing pure white pictures. Burned areas are slightly darker than surrounding areas.
    1. Clean the screen with a dry clean cloth.
    2. Click on the link below to open the white box.
    White window for finding screen burn-in
    3. Press F11 to activate full screen mode or window slowly stretch the edges of the screen.
    4. L</span>ook carefully screen where dark spots are visible.
    If you find dark spots, use JScreenFix Deluxe to reduce screen burn and prevent future burning.
    JScreenFix deluxe - Prevent screen burn-in

    Image Retention Test
    Plasma Display Coalition | Image Retention Tests

    Plasma Display Coalition

    In the instructions for the LCD is said that should not be kept longer static image on the screen. You can get a "footprint." Puppy, you see ..
    http://rl531.bmstu.ru:3000/pic/CIMG3862cr.jpg
    Last edited: Aug 3, 2010
  29. jorrit

    jorrit Member

    Joined:
    Apr 27, 2010
    Messages:
    61
    Trophy Points:
    8
    Ratings:
    +8
    @hristoslav2: in your philips post it says that the 32fpl9705 has 400Hz and 0.5ms response time. But philips itself says it has 200Hz and 1ms. Who is wrong?
  30. jorrit

    jorrit Member

    Joined:
    Apr 27, 2010
    Messages:
    61
    Trophy Points:
    8
    Ratings:
    +8
    My 37pfl8605 starts with: VN1E. That us the AUO A-MVA4 but it's not in the list, why? Do you know what the 4 in amva4 stands for?
Thread Status:
Not open for further replies.

Share This Page
