27-10-2008, 8:35 PM
|
#1 (permalink)
|
|
Member
Join Date: Oct 2004
Posts: 756
Thanks: Gave 2, Got 13
|
Pics of AV hidden cupboards, rooms, 19" racks
Anyone who has a hidden area containing all their gear (ie, racks, cupboards) could you post your pics here please? and also list where exactly you got the racks etc.
Need some inspiration...
Last edited by mark88; 27-10-2008 at 8:59 PM.
|
|
|
|
27-10-2008, 8:55 PM
|
#2 (permalink)
|
|
Assured Advertiser
Join Date: Dec 2006
Location: Kenilworth
Posts: 654
Thanks: Gave 8, Got 101
|
Re: Pics of AV hidden cupboards, rooms, 19" racks
I'll start then:

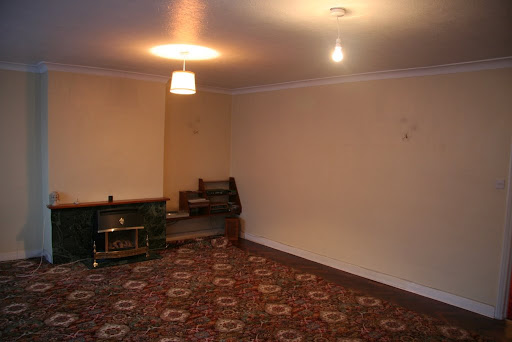

Before:

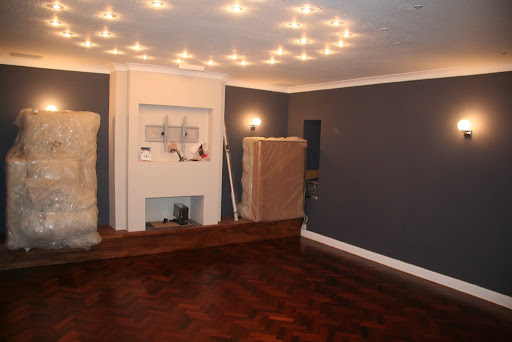

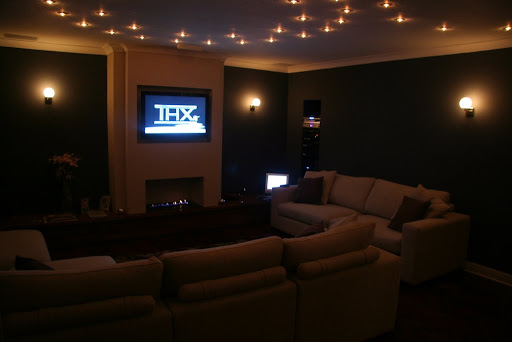

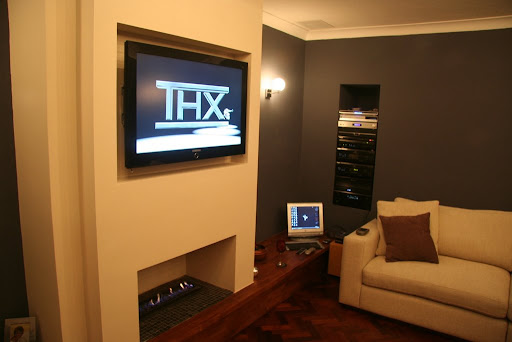

After:
Dupe...
|
|
|
|
|
27-10-2008, 8:58 PM
|
#3 (permalink)
|
|
Member
Join Date: Oct 2004
Posts: 756
Thanks: Gave 2, Got 13
|
Re: Pics of AV hidden cupboards, rooms, 19" racks
Very nice, can you also post where you got your rack and other bits and bobs?
|
|
|
|
|
27-10-2008, 9:17 PM
|
#4 (permalink)
|
|
Assured Advertiser
Join Date: Dec 2006
Location: Kenilworth
Posts: 654
Thanks: Gave 8, Got 101
|
Re: Pics of AV hidden cupboards, rooms, 19" racks
I'm an installer so I got it from myself, see sig. But, rack and blanking plates are from Middle Atlantic. The power strip at the bottom was from www.canford.co.uk.
Dupe...
|
|
|
|
|
28-10-2008, 10:46 AM
|
#5 (permalink)
|
|
Member
Join Date: Mar 2006
Location: Addlestone
Posts: 123
Thanks: Gave 7, Got 5
|
Re: Pics of AV hidden cupboards, rooms, 19" racks
Do you sell those racks on your site? Cant seem to find it if so.
__________________
Mission system of 2 x 773e 2 x 77DS & 1 x 77C1 Mordaunt-Short Alumni 9, XBOX-360 Elite, PS3, Sony Bravia 1080p 40"HDTV, Onkyo 605
|
|
|
|
|
28-10-2008, 5:49 PM
|
#6 (permalink)
|
|
Senior Member
Join Date: Jan 2007
Location: halfway down a bottle of voddie
Posts: 1,701
Thanks: Gave 1,032, Got 548
|
Re: Pics of AV hidden cupboards, rooms, 19" racks
Very nice DJ Dulux.  I was going to go down the MA route a while back, then thought I'd put it on hold for a while, but the last few days I've been thinking about it again. Your pic has just refuelled my craving for an MA rack with faceplates lol.
Looks wicked mate.
|
|
|
|
|
28-10-2008, 6:47 PM
|
#7 (permalink)
|
|
Senior Member
Join Date: Sep 2008
Location: Hertfordshire
Posts: 2,258
Thanks: Gave 235, Got 213
|
Re: Pics of AV hidden cupboards, rooms, 19" racks
Quote:
Originally Posted by THE_FORCE
Very nice DJ Dulux. I was going to go down the MA route a while back, then thought I'd put it on hold for a while, but the last few days I've been thinking about it again. Your pic has just refuelled my craving for an MA rack with faceplates lol.
Looks wicked mate. |
Looks great
__________________
Film JVC HD100,Carada BW variable masking,Denon 3800,Dacmagic, Oppo 983,Arcam AV8, P1, P7,Naim 135x4,Naim 250x2, Usher R1.5,Sonus Faber Extrema, Cremona, Elector amators, Gravis, 8033, Naim NACA5, Chord. Music Linn Sondek,Syrinx,Koetsu Red, Denon DCD3300, Croft, Tron 211, Living voice Airscout Horns
|
|
|
|
|
28-10-2008, 9:23 PM
|
#8 (permalink)
|
|
Member
Join Date: Sep 2007
Location: Swansea, Wales
Posts: 89
Thanks: Gave 13, Got 3
|
Re: Pics of AV hidden cupboards, rooms, 19" racks
dj-dulux what IR system are you using? Xantech??
I'll be looking for something similar for myself (personal), but the racks I do at work are all full-length cinema/nightclub systems so we rarely / if ever use IR packages in the racks as they tend to be fixed in one-place (obviously no remotes) as with everything controlled through a Soundweb DSP.
Last edited by EVH; 30-10-2008 at 5:02 PM.
|
|
|
|
|
30-10-2008, 10:04 PM
|
#9 (permalink)
|
|
Member
Join Date: Apr 2005
Location: The Big Smoke
Posts: 286
Thanks: Gave 61, Got 34
|
Re: Pics of AV hidden cupboards, rooms, 19" racks
Last edited by EViLDONKEY; 30-10-2008 at 10:10 PM.
|
|
|
|
|
30-10-2008, 10:14 PM
|
#10 (permalink)
|
|
Senior Member
Join Date: May 2005
Location: Fae Arbroath eh!
Posts: 2,116
Thanks: Gave 360, Got 283
|
Re: Pics of AV hidden cupboards, rooms, 19" racks
One of the many iterations of my rack - note this is now 44u but we are in the process of decorating...
Edit: Mark, I've just realised that you're the OP so you've seen these pics before!
__________________
Assorted gear: Panny 42TH PX70, B&W Speakers, Kef HTB 2 Sub, Linn Diskreet speakers, multiroom Sky+ HD, PS3, Tosh EP30 HDDVD, Acer iDea 500 HTPC, Sennheiser HDR-120s, network gubbins, Xbox360s, Wii, Harmony 525, 360 & One. My Av-centric home
Last edited by dunks517; 30-10-2008 at 10:19 PM.
|
|
|
|
|
30-10-2008, 10:35 PM
|
#11 (permalink)
|
|
Assured Advertiser
Join Date: Dec 2006
Location: Kenilworth
Posts: 654
Thanks: Gave 8, Got 101
|
Re: Pics of AV hidden cupboards, rooms, 19" racks
Quote:
Originally Posted by EVH
dj-dulux what IR system are you using? Xantech??
I'll be looking for something similar for myself (personal), but the racks I do at work are all full-length cinema/nightclub systems so we rarely / if ever use IR packages in the racks as they tend to be fixed in one-place (obviously no remotes) as with everything controlled through a Soundweb DSP.
|
Its all controlled with the Philips TSU9600 and the RFX9600 extender, this gives IR control for the DVD and sky box, everything else is RS232, projector, video and audio processors and Lutron lighting behind rack. Blinds and active speakers are switched using the relays, again in the Philips. A panasonic Blu-ray player has been added too now.... I have not used soundweb for some time, but nothing stopping you using it in domestic applications........
Dupe...
|
|
|
|
|
30-10-2008, 10:37 PM
|
#12 (permalink)
|
|
Member
Join Date: Jul 2007
Location: London
Posts: 170
Thanks: Gave 75, Got 12
|
Re: Pics of AV hidden cupboards, rooms, 19" racks
Not really a rack but the kit is hidden away in a kitchen cupboard...
|
|
|
|
|
01-11-2008, 9:17 AM
|
#13 (permalink)
|
|
Member
Join Date: Aug 2008
Posts: 42
Thanks: Gave 0, Got 8
|
Re: Pics of AV hidden cupboards, rooms, 19" racks
On a similar vien mines a kitchen cupboard and very much work in progress
links in the sig.
|
|
|
|
|
03-11-2008, 9:02 AM
|
#14 (permalink)
|
|
Senior Member
Join Date: Jun 2007
Location: London
Posts: 2,906
Thanks: Gave 111, Got 262
|
Re: Pics of AV hidden cupboards, rooms, 19" racks
|
|
|
|
| |
